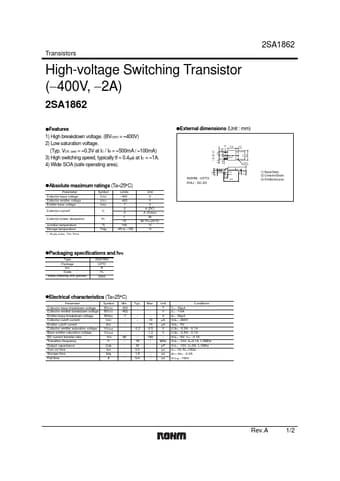

2SA1862 - High-voltage Switching Transistor

Rohm

📥 Download Datasheet

2SA1862 Datasheet Preview — Preview of 2SA1862 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SA1862
Manufacturer	ROHM
File Size	93.05 KB
Description	High-voltage Switching Transistor
Datasheet	2SA1862_Rohm.pdf

2SA1862 Product details

Features

1) High breakdown voltage. (BVCEO =.
400V) 2) Low saturation voltage. (Typ. VCE (sat) =.
0.3V at IC / IB =.
500mA /.
100mA) 3) High switching speed, typically tf = 0.4µs at IC =.
1A. 4) Wide SOA (safe operating area). zExternal dimensions (Unit : mm) 0.75 5.5 1.5 (3) (2) (1) 2.3 0.9 0.9 0.65 2.3 5.1 6.5 C0.5 1.0 0.5 0.5 1.5 2.5 9.5 zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base volta.
