RW1067C-0C-003 - 34COM/80SEG DRIVER&CONTROLLER

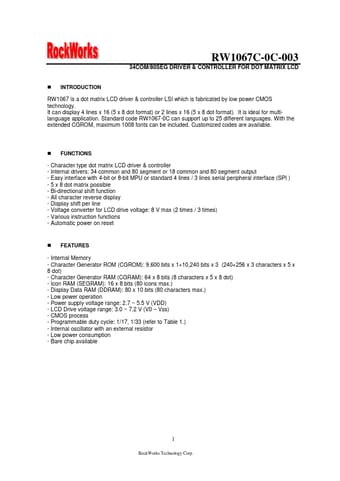

RW1067C-0C-003 Datasheet Preview — Preview of RW1067C-0C-003 PDF

Datasheet Details

Part number	RW1067C-0C-003
Manufacturer	RockWorks
File Size	2.07 MB
Description	34COM/80SEG DRIVER&CONTROLLER
Datasheet	RW1067C-0C-003-RockWorks.pdf

RW1067C-0C-003 Product details

Description

Modify Time Characteristics 、 2006/04/11 AC Characteristics、DC Characteristics  2006/07/05 Pad Configuration add Substrate connects to VSS Add CHIP LAYOUT 2006/07/14 Add 4-PIN、3-PIN SPI Circuit and initializing by instruction 2006/09/01 Add 4-line display mode circuit 2006/10/25 Add the Hebrew language Correct typing mistake for DDRAM.Add explanation to 2007/1/22 DDRAM section Add I/O pad configuration and modify MPU interface 2007/4/23 circuit Modify Voltage converter for LCD drive volta

Features

- Internal Memory - Character Generator ROM (CGROM): 9,600 bits x 1+10,240 bits x 3 (240+256 x 3 characters x 5 x 8 dot) - Character Generator RAM (CGRAM): 64 x 8 bits (8 characters x 5 x 8 dot) - Icon RAM (SEGRAM): 16 x 8 bits (80 icons max. ) - Display Data RAM (DDRAM): 80 x 10 bits (80 characters max. ) - Low power operation - Power supply voltage range: 2.7 ~ 5.5 V (VDD) - LCD Drive voltage range: 3.0 ~ 7.2 V (V0.
Vss) - CMOS process - Programmable duty cycle: 1/17, 1/33 (refer to Tab.
