RW1063-0A-001 - 16COM/40SEG DRIVER & CONTROLLER

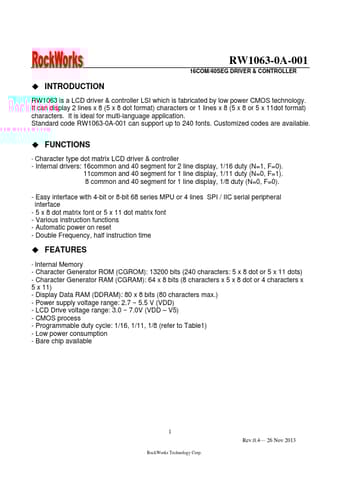

RW1063-0A-001 Datasheet Preview — Preview of RW1063-0A-001 PDF

Datasheet Details

Part number	RW1063-0A-001
Manufacturer	RockWorks
File Size	1.72 MB
Description	16COM/40SEG DRIVER & CONTROLLER
Datasheet	RW1063-0A-001-RockWorks.pdf

RW1063-0A-001 Product details

Description

2011/8/4 First Edition 2011/11/9 Modify the AC Characteristics Make correction for number duty.2011/11/18 P.4,P.9,P.25,P.32~P.33,P.40~P.43,P.47 Make correction for number duty.2011/11/25 P.1,P.7,P12,P.43,P.47 Modify initializing by instruction and DC characteristics(VIL) 2012/4/13 Pad configuration add Substrate connects to VDD note 2013/1/22 Modify page 47 circuit and interface setting 2013/11/26 Add 4-SPI and IIC timing 2 RockWorks Technology Corp.Rev.0.4― 26 Nov 2013 Programma

Features

S - Internal Memory - Character Generator ROM (CGROM): 13200 bits (240 characters: 5 x 8 dot or 5 x 11 dots) - Character Generator RAM (CGRAM): 64 x 8 bits (8 characters x 5 x 8 dot or 4 characters x 5 x 11) - Display Data RAM (DDRAM): 80 x 8 bits (80 characters max. ) - Power supply voltage range: 2.7 ~ 5.5 V (VDD) - LCD Drive voltage range: 3.0 ~ 7.0V (VDD.
V5) - CMOS process - Programmable duty cycle: 1/16, 1/11, 1/8 (refer to Table1) - Low power consumption - Bare chip available 1 R.
