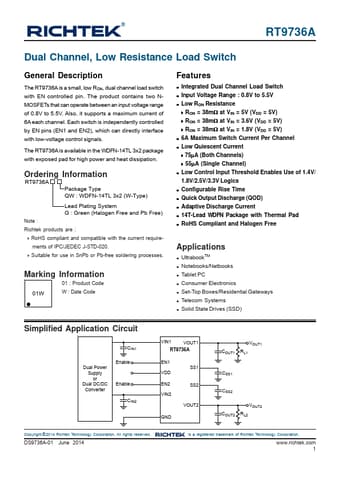

RT9736A Datasheet Preview — Preview of RT9736A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RT9736A
Manufacturer	Richtek
File Size	245.67 KB
Description	Low Resistance Load Switch
Datasheet	RT9736A-Richtek.pdf

RT9736A Product details

Description

The RT9736A is a small, low RON, dual channel load switch with EN controlled pin.

Features

Integrated Dual Channel Load Switch.
Input Voltage Range : 0.8V to 5.5V.
Low RON Resistance  RON = 38mΩ at VIN = 5V (VDD = 5V)  RON = 38mΩ at VIN = 3.6V (VDD = 5V)  RON = 38mΩ at VIN = 1.8V (VDD = 5V).
6A Maximum Switch Current Per Channel.
Low Quiescent Current  75μA (Both Channels)  55μA (Single Channel).
Low Control Input Threshold Enables Use of 1.4V/ 1.8V/2.5V/3.3V Logics.
Configurable Rise Time.
Quick Output Discharge (QOD).
Adaptive Disch.
