RT9705B - 1A Power Multiplexer

Richtek

📥 Download Datasheet

RT9705B Datasheet Preview — Preview of RT9705B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RT9705B
Manufacturer	Richtek
File Size	284.82 KB
Description	1A Power Multiplexer
Datasheet	RT9705B-Richtek.pdf

RT9705B Product details

Features

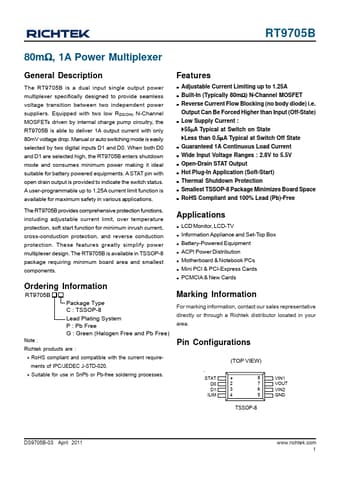

The RT9705B is a dual input single output power multiplexer specifically designed to provide seamless voltage transition between two independent power suppliers. Equipped with two low RDS(ON) N-Channel MOSFETs driven by internal charge pump circuitry, the RT9705B is able to deliver 1A output current with only 80mV voltage drop. Manual or auto switching mode is easily selected by two digital inputs D1 and D0. When both D0 and D1 are selected high, the RT9705B enters shutdown mode and consumes mi.
