X28HC64 - Byte Alterable EEPROM

X28HC64 Description

X28HC64 64k, 8k x 8-Bit 5 Volt, Byte Alterable EEPROM The X28HC64 is an 8k x 8 EEPROM, fabricated with Intersil’s proprietary, high performance, float.

X28HC64 Features

* the JEDEC approved pinout for byte-wide memories, compatible with industry standard RAMs. The X28HC64 supports a 64-byte page write operation, effectively providing a 32µs/byte write cycle, and enabling the entire memory to be typically written in 0.25 seconds. The X28HC64 also features DATA Polling

X28HC64 Applications

* requiring extended endurance. Inherent data retention is greater than 100 years. Pin Configurations X28HC64 (28 LD PDIP, SOIC) TOP VIEW NC A12 A7 A6 A5 A4 A3 A2 A1 A0 I/O0 I/O1 I/O2 VSS 1 28 2 27 3 26 4 25 5 24 6 23 7 X28HC64 22 8 21 9 20 10 19 11 18 12 17 13 16 14 15 VCC WE NC A8 A9 A11 OE A10

📥 Download Datasheet

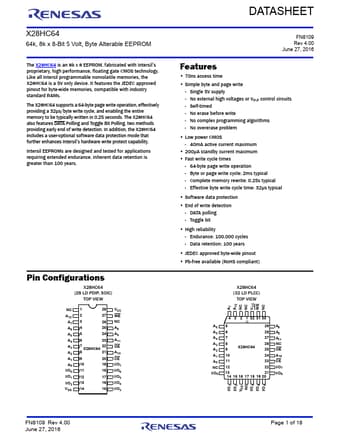

Preview of X28HC64 PDF
datasheet Preview Page 2 datasheet Preview Page 3
