X28C513, X28C512 Byte Alterable EEPROM

X28C513 Description

X28C512, X28C513 5V, Byte Alterable EEPROM The X28C512, X28C513 are 64K x 8 EEPROM, fabricated with Intersil’s proprietary, high performance, floating.

X28C513 Features

* Access Time: 90ns
* Simple Byte and Page Write - Single 5V supply
* No external high voltages or VPP control circuits - Self-timed
* No erase before write
* No complex programming algorithms
* No overerase problem
* Low Power CMOS - Active: 5

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: X28C513, X28C512. Please refer to the document for exact specifications by model.

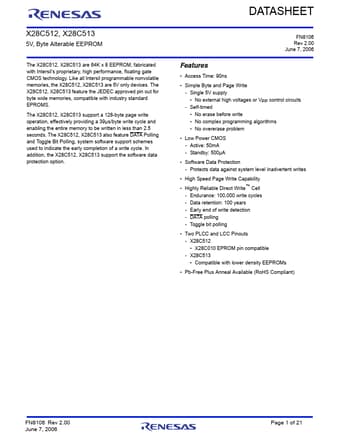

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
X28C513, X28C512
Manufacturer
Renesas ↗
File Size
833.16 KB
Datasheet
X28C512-Renesas.pdf
Description
Byte Alterable EEPROM
Note
This datasheet PDF includes multiple part numbers: X28C513, X28C512.
Please refer to the document for exact specifications by model.
