PS2561DL-1, PS2561D-1 - DIP PHOTOCOUPLER

Renesas

The PS2561DL-1 by Renesas is a DIP PHOTOCOUPLER. Below is the official datasheet preview.

📥 Download Datasheet

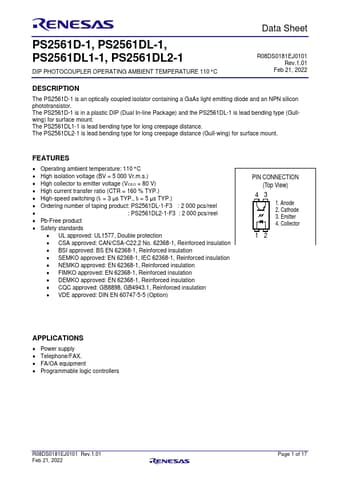

PS2561DL-1 DIP PHOTOCOUPLER by Renesas - Datasheet Preview — Official preview page of the PS2561DL-1 DIP PHOTOCOUPLER datasheet (Renesas).

Datasheet Details

Part number	PS2561DL-1, PS2561D-1
Manufacturer	Renesas
File Size	451.74 KB
Description	DIP PHOTOCOUPLER
Datasheet	PS2561D-1-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: PS2561DL-1, PS2561D-1. Please refer to the document for exact specifications by model.
Additional preview pages of the PS2561DL-1 datasheet.

PS2561DL-1 Product details

Description

The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

Features

Operating ambient temperature: 110 °C.
High isolation voltage (BV = 5 000 Vr. m. s. ).
High collector to emitter voltage (VCEO = 80 V).
High current transfer ratio (CTR = 160 % TYP. ).
High-speed switching (tr = 3 μs TYP. , tf = 5 μs TYP. ).
Ordering number of taping product: PS2561DL-1-F3 : 2 000 pcs/reel.
: PS2561DL2-1-F3 : 2 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: UL1577, Doub.
