PS2561DL2-1, PS2561D-1 - DIP PHOTOCOUPLER

Name: PS2561DL2-1
SKU: PS2561DL2-1-652012

NEC

The PS2561DL2-1 by NEC is a DIP PHOTOCOUPLER. Below is the official datasheet preview.

Datasheet Details

Part number	PS2561DL2-1, PS2561D-1
Manufacturer	NEC
File Size	160.59 KB
Description	DIP PHOTOCOUPLER
Datasheet	PS2561D-1_NEC.pdf
Note	This datasheet PDF includes multiple part numbers: PS2561DL2-1, PS2561D-1. Please refer to the document for exact specifications by model.

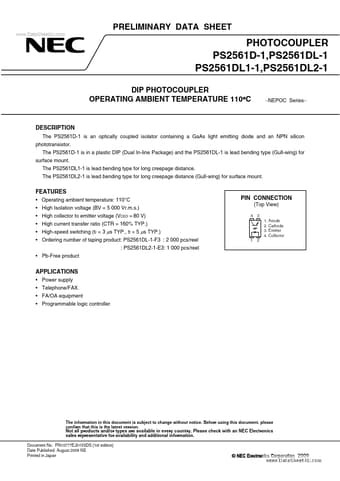

Additional preview pages of the PS2561DL2-1 datasheet.

The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

Operating ambient temperature: 110°C.
High Isolation voltage (BV = 5 000 Vr. m. s. ).
High collector to emitter voltage (VCEO = 80 V).
High current transfer ratio (CTR = 160% TYP. ).
High-speed switching (tr = 3 μs TYP. , tf = 5 μs TYP. ).
Ordering number of taping product: PS2561DL-1-F3 : 2 000 pcs/reel : PS2561DL2-1-E3: 1 000 pcs/reel.
Pb-Free product 1 2 4 PIN.
