NP89N04PUK - MOSFET

Description

The NP89N04PUK is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

  • Super low on-state resistance RDS(on) = 2.95 m MAX. (VGS = 10 V, ID = 45 A).
  • Low Ciss: Ciss = 3900 pF TYP. (VDS = 25 V).
  • Designed for automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NP80N03CDE SWITCHING N-CHANNEL POWER MOSFET NEC
NP80N03CLE SWITCHING N-CHANNEL POWER MOS FET NEC
NP80N03CLE SWITCHING N-CHANNEL POWER MOSFET NEC
NP80N03DDE SWITCHING N-CHANNEL POWER MOSFET NEC
NP80N03DLE SWITCHING N-CHANNEL POWER MOS FET NEC

Other Datasheets by Renesas

Part Number Description
NP89N04PDK N-Channel Power MOSFET
NP89N04MUK MOSFET
NP89N04NUK MOSFET
NP89N055MUK MOSFET
NP89N055NUK MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

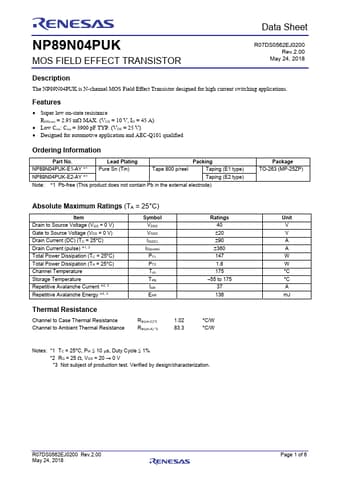

NP89N04PUK MOS FIELD EFFECT TRANSISTOR Preliminary Data Sheet R07DS0562EJ0200 Rev.2.00 May 24, 2018 Description The NP89N04PUK is N-channel MOS Field Effect Transistor designed for high current switching applications. Features  Super low on-state resistance RDS(on) = 2.95 m MAX. (VGS = 10 V, ID = 45 A)  Low Ciss: Ciss = 3900 pF TYP. (VDS = 25 V)  Designed for automotive application and AEC-Q101 qualified Ordering Information Part No.
