M61250BFP NTSC 1 chip TV signal processor

M61250BFP Description

M61250BFP NTSC 1 chip TV signal processor REJ03F0088-0100Z Rev.1.0 Sep.23.2003 .
The M61250BFP is a single-chip semiconductor integrated circuit that contains the signal processing for NTSC color television.

M61250BFP Features

* No VCO coil for VIF required Internal unregulated vocal demodulator PLL-SPLIT SIF system for FM radio Fsc output ACL or ABCL can be selected Internal horizontal oscillation probe I

M61250BFP Applications

* NTSC color television receivers Recommended Operating Conditions
* Power supply voltage range: 4.75 V to 5.25 (Pins 3, 4, 39, 40) 7.6 V to 8.4 V (Pins 12, 44) 8.3 V to 9.1 V (Pin 42)
* Recommended power supply voltage: 5.0 V (Pins 3, 4, 39, 40) 8.0 V (Pins 12, 44) 8.7 V (P

📥 Download Datasheet

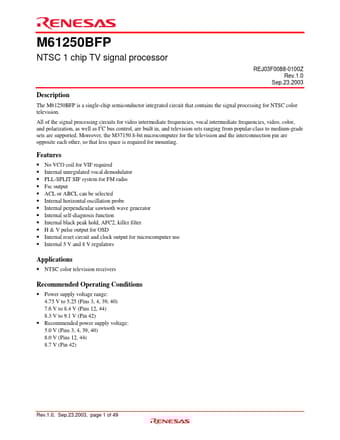

Preview of M61250BFP PDF
