M61040FP - Smart Battery Protection and Monitoring-IC

Description

The M61040FP is intended to be used as SB: Smart Battery.

All functions needed for SB are packed to this M61040FP.

The combination use with microcomputer such as M37515 will give various functions such as a detection or calculation of SB remaining capacity.

Features

  • Built-in high gain op-amps for monitoring charge/discharge current.
  • Built-in over current detection circuit for FET protection.
  • All FETs are controlled by microcomputer.
  • Various powers saving function to reduce total power dissipation.
  • High input voltage device (absolute maximum rating: 33 V).

📥 Download Datasheet

Datasheet Details

Part number M61040FP
Manufacturer Renesas
File Size 232.76 KB
Description Smart Battery Protection and Monitoring-IC
Datasheet download datasheet M61040FP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M61040FP Smart battery protection and monitoring IC Mitsubishi
M61040 Smart battery protection and monitoring IC Mitsubishi
M61041FP 4-Battery Version Renesas Technology
M61042FP 4-Battery Version / No Reset Pin Renesas Technology
M61044FP 3-Battery Version Renesas Technology

Other Datasheets by Renesas

Part Number Description
M61250BFP NTSC 1 chip TV signal processor
M61520FP 6ch Electronic Volume
M61522FP 8ch ELECTRONIC VOLUME
M61540FP 6ch Electronic Volume

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

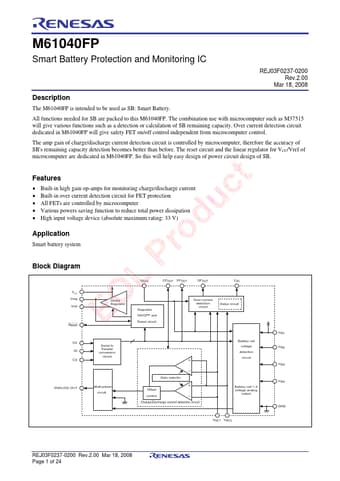

M61040FP Smart Battery Protection and Monitoring IC REJ03F0237-0200 Rev.2.00 Mar 18, 2008 Description The M61040FP is intended to be used as SB: Smart Battery. All functions needed for SB are packed to this M61040FP. The combination use with microcomputer such as M37515 will give various functions such as a detection or calculation of SB remaining capacity. Over current detection circuit dedicated in M61040FP will give safety FET on/off control independent from microcomputer control. The amp gain of charge/discharge current detection circuit is controlled by microcomputer, therefore the accuracy of SB's remaining capacity detection becomes better than before. The reset circuit and the linear regulator for VCC/Vref of microcomputer are dedicated in M61040FP.
