K1305 Silicon N-Channel MOSFET

K1305 Description

2SK1305 Silicon N Channel MOS FET Application High speed power switching .

K1305 Features

* Low on-resistance
* High speed switching
* Low drive current
* 4 V gate drive device  Can be driven from 5 V source
* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline RENESAS Package code: PRSS0003AD-A (Package name: TO-22

📥 Download Datasheet

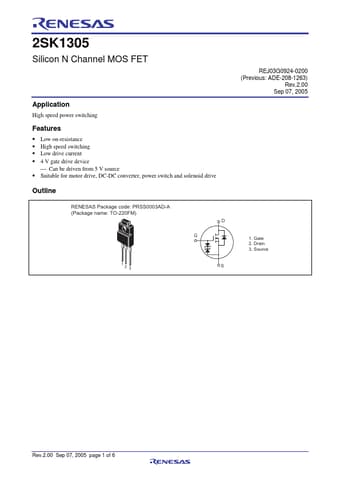

Preview of K1305 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K1305
Manufacturer
Renesas ↗
File Size
72.71 KB
Datasheet
K1305-Renesas.pdf
Description
Silicon N-Channel MOSFET
