ISLA224S High Speed Serial Output ADC

ISLA224S Description

DATASHEET ISLA224S Dual 14-Bit, 250/200/125 MSPS JESD204B High Speed Serial Output ADC FN7911 Rev 2.00 April 25, 2013 The ISLA224S is a series of l.
PIN NUMBER 2, 11, 14, 15, 46 12, 20, 47, 48 3, 6, 7, 10 4, 5 8, 9 1 44 16, 17 45 13 26, 29, 32, 35, 37, 38 25, 36, 39 22, 24 21, 23 18, 19 27, 28 30,.

ISLA224S Features

* including the fine gain and offset adjustments of the two ADC cores as well as the programmable clock divider, enabling 2x and 4x harmonic clocking. The ISLA224S is available in a space-saving 7mmx7mm 48 Ld QFN package. The package features a thermal pad for improved thermal performance and is speci

ISLA224S Applications

* Radar and Satellite Antenna Array Processing
* Broadband Communications and Microwave Receivers
* High-Performance Data Acquisition
* Communications Test Equipment

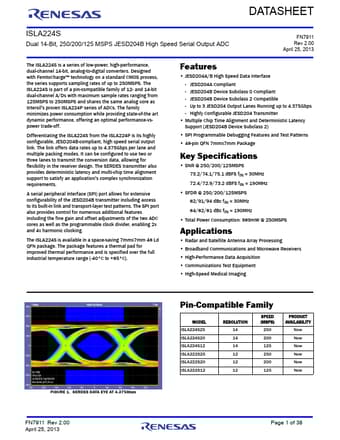

* High-Speed Medical Imaging FIGURE 1. SERDES DATA EYE AT 4.375Gbps Pin-Compatible Family M
