ISL97650 - 4-Channel Integrated LCD Supply

Features

  • 4V to 14V Input Supply.
  • AVDD Boost Up to 20V, with Integrated 2.8A FET.
  • Integrated VON Charge Pump, Up to 35VOUT.
  • VOFF Charge Pump Driver, Down to -18V.
  • VLOGIC Buck Down to 1.2V, with Integrated 2A FET.
  • Automatic Start-up Sequencing - AVDD -> VOFF -> VON or AVDD/VOFF -> VON - Independent Logic Enable.
  • VON Slicing.
  • Thermally Enhanced 6x6 Thin QFN Package.
  • Pb-free (RoHS compliant).

📥 Download Datasheet

Datasheet Details

Part number ISL97650
Manufacturer Renesas
File Size 560.22 KB
Description 4-Channel Integrated LCD Supply
Datasheet download datasheet ISL97650 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISL976787 4-Channel LED Driver Intersil
ISL9000AM Dual LDO Intersil
ISL9008 Low Noise LDO Intersil
ISL90840 XDCP Intersil
ISL90843 Quad Digital Controlled Potentiometers Intersil Corporation

Other Datasheets by Renesas

Part Number Description
ISL97650B 4-Channel Integrated LCD Supply
ISL97651 4-Channel Integrated LCD Supply
ISL97652 4-Channel Integrated LCD Supply
ISL97653A 5-Channel Integrated LCD Supply
ISL97656 Step-Up Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

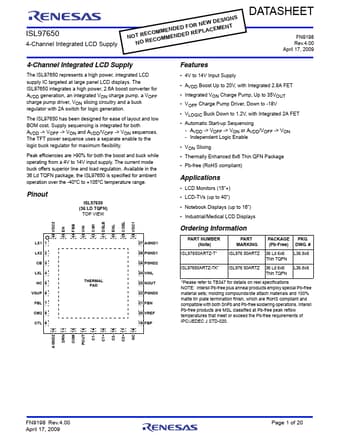

ISL97650 4-Channel Integrated LCD Supply NOTNORERCEOCMOMMEMNEDNEDDEDFORREPNLEAWCDEEMSEINGTNS DATASHEET FN9198 Rev.4.00 April 17, 2009 4-Channel Integrated LCD Supply The ISL97650 represents a high power, integrated LCD supply IC targeted at large panel LCD displays. The ISL97650 integrates a high power, 2.6A boost converter for AVDD generation, an integrated VON charge pump, a VOFF charge pump driver, VON slicing circuitry and a buck regulator with 2A switch for logic generation. The ISL97650 has been designed for ease of layout and low BOM cost. Supply sequencing is integrated for both AVDD -> VOFF -> VON and AVDD/VOFF -> VON sequences. The TFT power sequence uses a separate enable to the logic buck regulator for maximum flexibility.
