ISL95871C - SMBus Interfaced Battery Charger

Renesas

📥 Download Datasheet

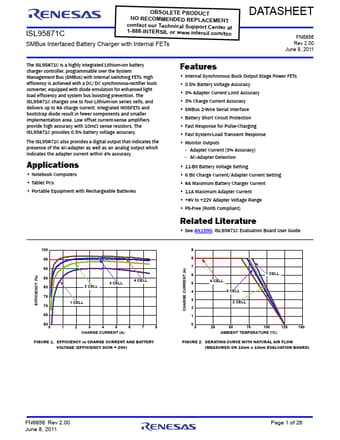

ISL95871C Datasheet Preview — Preview of ISL95871C PDF

Datasheet Details

Part number	ISL95871C
Manufacturer	Renesas
File Size	775.57 KB
Description	SMBus Interfaced Battery Charger
Datasheet	ISL95871C-Renesas.pdf

ISL95871C Product details

Description

PIN NUMBER 1, 8, 37, 51 SYMBOL AGND 2 ACOK 3 4 5 6 7, 21, 39, 45, 50 9, 10, 52 VFB CSON CSOP DCIN NC VDDP 11, 17, 18, 19, 20, 54 12, 13, 14, 15, 16 PHASE PGND DESCRIPTION Analog Ground.Connect directly to the backside paddle.Connect to PGND and the system ground plane under the IC.AC-Adapter Detection Output.This open drain output is high impedance when ACIN is greater than 3.2V.The ACOK output remains low when the ISL95871C is powered down.Connect a 10k pull-up resistor from ACO

Features

Internal Synchronous Buck Output Stage Power FETs.
0.5% Battery Voltage Accuracy.
3% Adapter Current Limit Accuracy.
3% Charge Current Accuracy.
SMBus 2-Wire Serial Interface.
Battery Short Circuit Protection.
Fast Response for Pulse-Charging.
Fast System-Load Transient Response.
Monitor Outputs - Adapter Current (3% Accuracy) - AC-Adapter Detection.
11-Bit Battery Voltage Setting.
6 Bit Charge Cu.
