ISL81601 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller

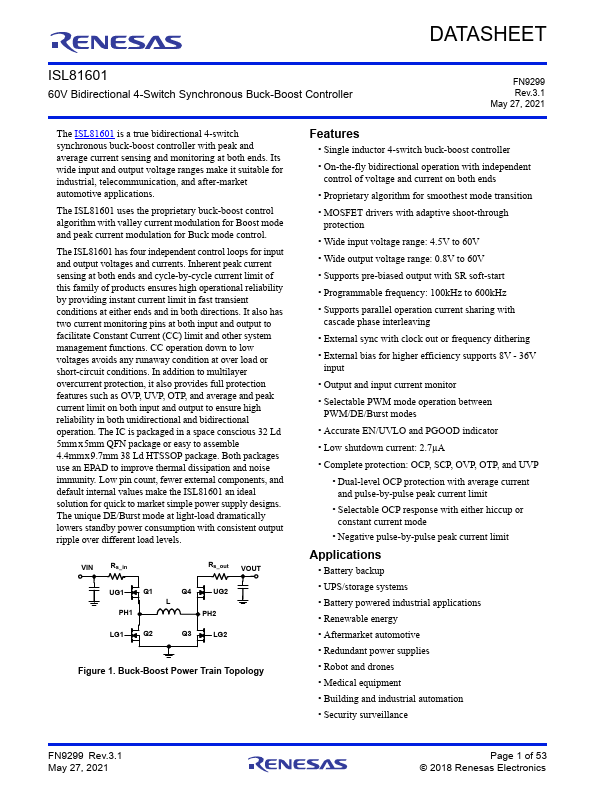

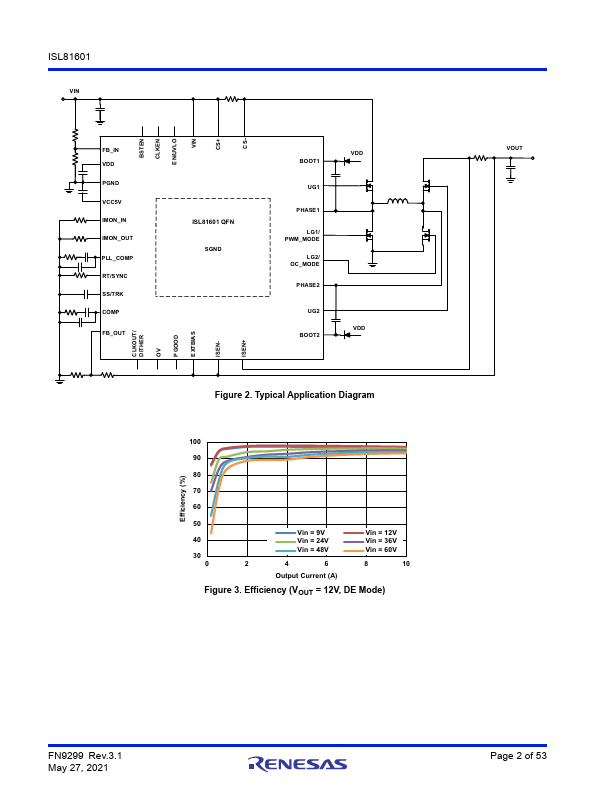

DATASHEET ISL81601 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller FN9299 Rev.3.1 May 27, 2021 The ISL81601 is a true bidirectional 4-switch synchronous buck-boost controller with peak and average current sensing and monitoring at both ends. Its wide input and output voltage ranges make it suitable for industrial, telecommunication, and after-market automotive applications. The ISL81601 uses the proprietary buck-boost control algorithm with valley current modulation for Boost mod.

ISL81601 Features

* such as OVP, UVP, OTP, and average and peak current limit on both input and output to ensure high reliability in both unidirectional and bidirectional operation. The IC is packaged in a space conscious 32 Ld 5mm x5mm QFN package or easy to assemble 4.4mmx9.7mm 38 Ld HTSSOP package. Both packages use

ISL81601 Datasheet (2.31 MB)

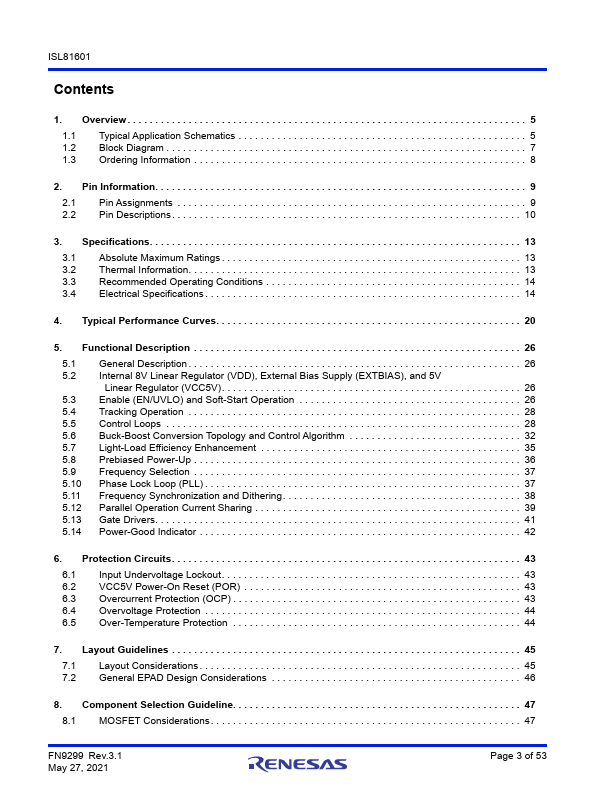

ISL81601 Datasheet Preview — Preview of ISL81601 PDF

Datasheet Details

Part number:

ISL81601

Manufacturer:

Renesas ↗

File Size:

2.31 MB

Description:

60v bidirectional 4-switch synchronous buck-boost controller.
