ISL8104 - Single-Phase Synchronous Buck Pulse-Width Modulation Controller

Features

  • the ability to safely start-up into prebiased output loads and provides protection against overcurrent fault events. Overcurrent protection is implemented using top-side MOSFET rDS(ON) sensing, eliminating the need for a current sensing resistor. The ISL8104 employs voltage-mode control with dual-edge modulation to achieve fast transient response. The operating frequency is adjustable from 50kHz to 1.5MHz with full (0% to 100%) PWM duty cycle capability. The error amplifier features a 15MHz (ty.

📥 Download Datasheet

Datasheet Details

Part number ISL8104
Manufacturer Renesas
File Size 701.46 KB
Description Single-Phase Synchronous Buck Pulse-Width Modulation Controller
Datasheet download datasheet ISL8104 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISL837030 Modem Reference Designs Intersil Corporation
ISL83740 Modem Reference Designs Intersil Corporation
ISL8483 RS-485/RS-422 Transceivers Intersil
ISL8485 RS-485/RS-422 Transceivers Intersil
ISL8488 RS-485/RS-422 Transceivers Intersil

Other Datasheets by Renesas

Part Number Description
ISL8101 Two-Phase Multiphase Buck PWM Controller
ISL8102 Two-Phase Buck PWM Controller
ISL8103 Three-Phase Buck PWM Controller
ISL8105 +5V or +12V Single-Phase Synchronous Buck Converter PWM Controller
ISL8105A +5V or +12V Single-Phase Synchronous Buck Converter PWM Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

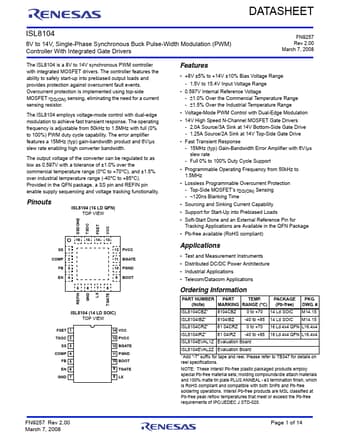

DATASHEET ISL8104 8V to 14V, Single-Phase Synchronous Buck Pulse-Width Modulation (PWM) Controller With Integrated Gate Drivers FN9257 Rev 2.00 March 7, 2008 The ISL8104 is a 8V to 14V synchronous PWM controller with integrated MOSFET drivers. The controller features the ability to safely start-up into prebiased output loads and provides protection against overcurrent fault events. Overcurrent protection is implemented using top-side MOSFET rDS(ON) sensing, eliminating the need for a current sensing resistor. The ISL8104 employs voltage-mode control with dual-edge modulation to achieve fast transient response. The operating frequency is adjustable from 50kHz to 1.5MHz with full (0% to 100%) PWM duty cycle capability.
