ISL80505 - High Performance 500mA LDO

Renesas

The ISL80505 by Renesas is a High Performance 500mA LDO. Below is the official datasheet preview.

📥 Download Datasheet

ISL80505 High Performance 500mA LDO by Renesas - Datasheet Preview — Official preview page of the **ISL80505** High Performance 500mA LDO datasheet (Renesas).

Datasheet Details

Part number	ISL80505
Manufacturer	Renesas
File Size	953.20 KB
Description	High Performance 500mA LDO
Datasheet	ISL80505-Renesas.pdf

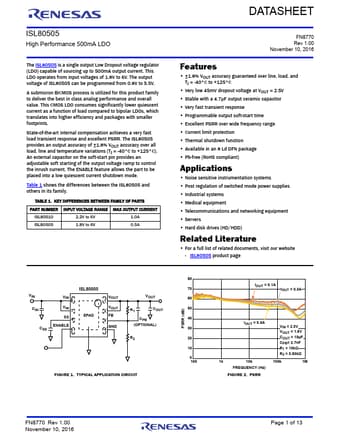

Additional preview pages of the ISL80505 datasheet.

ISL80505 Product details

Description

PIN NUMBER 1, 2 3 4 5 6 7, 8 - PIN NAME VOUT FB GND ENABLE SS VIN EPAD DESCRIPTION Regulated output voltage.A minimum 4.7µF X5R/X7R output capacitor is required for stability.See “External Capacitor Requirements” on page 10 for more details.This pin is the input to the control loop error amplifier and is used to set the output voltage of the LDO.Ground VIN independent chip enable.TTL and CMOS compatible.External capacitor on this pin adjusts start-up ramp and controls inrush current.I

Features

±1.8% VOUT accuracy guaranteed over line, load, and TJ = -40°C to +125°C.
Very low 45mV dropout voltage at VOUT = 2.5V.
Stable with a 4.7µF output ceramic capacitor.
Very fast transient response.
Programmable output soft-start time.
Excellent PSRR over wide frequency range.
Current limit protection.
Thermal shutdown function.
Available in an 8 Ld DFN package.
Pb-free (RoHS compliant).
