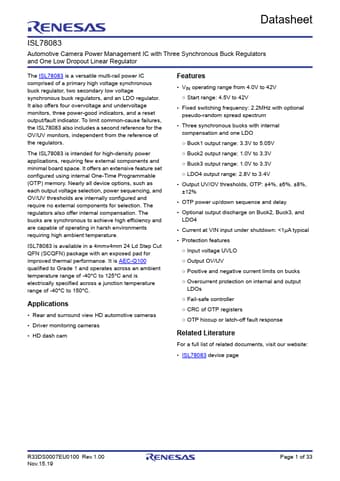

ISL78083 - Automotive Camera Power Management

Renesas

Datasheet Details

Part number	ISL78083
Manufacturer	Renesas
File Size	912.26 KB
Description	Automotive Camera Power Management
Datasheet	ISL78083-Renesas.pdf

. . .

VIN operating range from 4.0V to 42V ○ Start range: 4.5V to 42V.
Fixed switching frequency: 2.2MHz with optional pseudo-random spread spectrum.
Three synchronous bucks with internal compensation and one LDO ○ Buck1 output range: 3.3V to 5.05V ○ Buck2 output range: 1.0V to 3.3V ○ Buck3 output range: 1.0V to 3.3V ○ LDO4 output range: 2.8V to 3.4V.
Output UV/OV thresholds, OTP: ±4%, ±6%, ±8%, ±12%.
OTP power up/down sequence and delay.
Optional.
