ISL267450 - 1MSPS SAR ADCs

ISL267450 Description

DATASHEET ISL267450 12-Bit, 1MSPS SAR ADCs The ISL267450 is a 12-bit, 1MSPS sampling SAR-type ADC with a differential input span of 2 *VREF volts..
PIN NAME VDD SCLK SDATA CS GND VIN. VIN+ VREF ISL267450 PIN NUMBER 8 7 6 5 4 3 2 1 DESCRIPTION Supply voltage, +2.

ISL267450 Features

* excellent linearity over supply and temperature variations and is drop-in compatible with the AD7450. The device can operate from a supply voltage of either 5V or 3V and maintain measurement accuracy with input signals up to the supply rails. The serial digital interface is SPI compatible and is eas

ISL267450 Applications

* Remote Data Acquisition
* Battery Operated Systems
* Industrial Process Control
* Energy Measurement
* Data Acquisition Systems
* Pressure Sensors
* Flow Controllers Block Diagram +VDD VREF VIN+ VIN- ADC SERIAL INTERFACE SCLK SDATA CS

📥 Download Datasheet

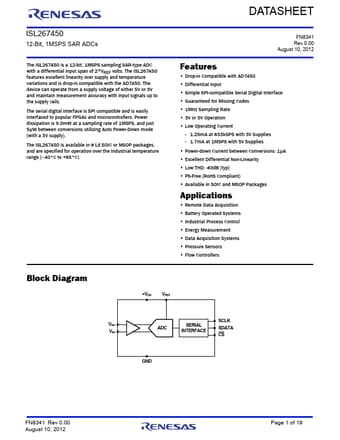

Preview of ISL267450 PDF
