ISL26712 Datasheet (Renesas)

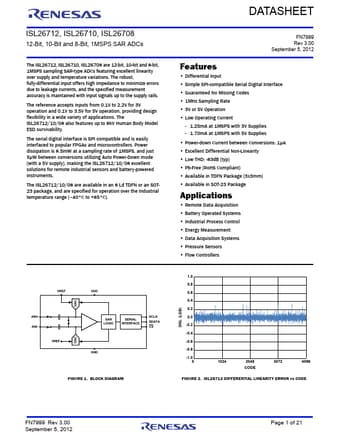

ISL26712, 1MSPS SAR ADC

ISL26712/10/08 PIN NAME PIN NUMBER (TDFN) PIN NUMBER (SOT-23) DESCRIPTION VDD 8 1 Supply voltage, +2.7V to 5.25V.

SCLK 7 2 Serial clock input.

Controls digital I/O timing and clocks the conversion.

SDATA 6 3 Digital conversion output.

CS 5 4 Chip select input.

Generally controls the s

ISL26712, ISL26710, ISL26708 12-Bit, 10-Bit and 8-Bit, 1MSPS SAR ADCs The ISL26712, ISL26710, ISL26708 are 12-bit, 10-bit and 8-bit, 1MSPS sampling SAR-type ADCs featuring excellent linearity over supply and temperature variations.

The robust, fully-differential input offers high impedance to minimize errors due to leakage currents, and the specified measurement accuracy is maintained with input signals up to the supply rails.

The reference accepts inputs from 0.1V to 2.2V for 3V operation and 0

ISL26712 Features

* up to 8kV Human Body Model ESD survivability. The serial digital interface is SPI compatible and is easily interfaced to popular FPGAs and microcontrollers. Power dissipation is 8.5mW at a sampling rate of 1MSPS, and just 5µW between conversions utilizing Auto Power-Down mode (with a 5V supply), mak
