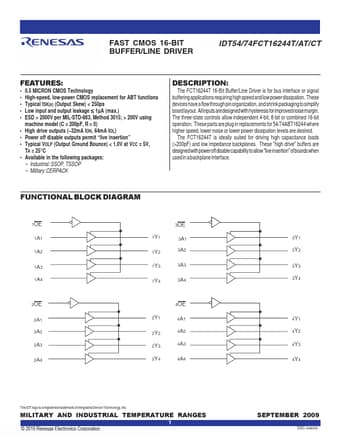

IDT74FCT16244AT, IDT74FCT16244T - FAST CMOS 16-BIT BUFFER/LINE DRIVER

Renesas

Datasheet Details

Part number	IDT74FCT16244AT, IDT74FCT16244T
Manufacturer	Renesas
File Size	182.74 KB
Description	FAST CMOS 16-BIT BUFFER/LINE DRIVER
Datasheet	IDT74FCT16244T-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: IDT74FCT16244AT, IDT74FCT16244T. Please refer to the document for exact specifications by model.

The FCT16244T 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation.

0.5 MICRON CMOS Technology.
High-speed, low-power CMOS replacement for ABT functions.
Typical tSK(o) (Output Skew) < 250ps.
Low input and output leakage ≤ 1µA (max. ).
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
High drive outputs (.
32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
