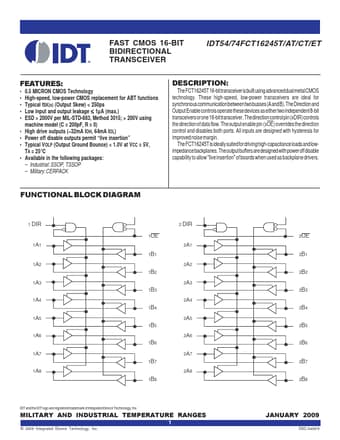

IDT74FCT16245AT, IDT74FCT16245 - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS

Datasheet Details

Part number	IDT74FCT16245AT, IDT74FCT16245
Manufacturer	IDT
File Size	77.98 KB
Description	FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS
Datasheet	IDT74FCT16245_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT74FCT16245AT, IDT74FCT16245. Please refer to the document for exact specifications by model.

The FCT16245T 16-bit transceiver is built using advanced dual metal CMOS technology.

0.5 MICRON CMOS Technology.
High-speed, low-power CMOS replacement for ABT functions.
Typical tSK(o) (Output Skew) < 250ps.
Low input and output leakage ≤ 1µA (max. ).
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
High drive outputs (.
32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
