ICS670-01 - LOW PHASE NOISE ZERO DELAY BUFFER AND MULTIPLIER

Name: ICS670-01
SKU: ICS670-01-1561347

Renesas

📥 Download Datasheet

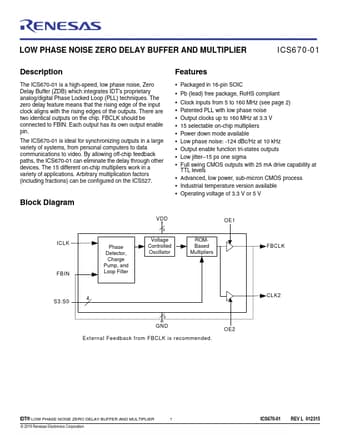

ICS670-01 Datasheet Preview — Preview of ICS670-01 PDF

Datasheet Details

Part number	ICS670-01
Manufacturer	Renesas
File Size	210.86 KB
Description	LOW PHASE NOISE ZERO DELAY BUFFER AND MULTIPLIER
Datasheet	ICS670-01-Renesas.pdf

ICS670-01 Product details

Description

The ICS670-01 is a high-speed, low phase noise, Zero Delay Buffer (ZDB) which integrates IDT’s proprietary analog/digital Phase Locked Loop (PLL) techniques.

Features

Packaged in 16-pin SOIC.
Pb (lead) free package, RoHS compliant.
Clock inputs from 5 to 160 MHz (see page 2).
Patented PLL with low phase noise.
Output clocks up to 160 MHz at 3.3 V.
15 selectable on-chip multipliers.
Power down mode available.
Low phase noise: -124 dBc/Hz at 10 kHz.
Output enable function tri-states outputs.
Low jitter.
15 ps one sigma.
Full swing CMOS outputs with 25 mA d.
