HIP6502B Multiple Linear Power Controller

HIP6502B Description

DATASHEET HIP6502B Multiple Linear Power Controller with ACPI Control Interface FN4871 Rev.0.00 May 2000 The HIP6502B complements either an HIP6020.

HIP6502B Features

* Provides 5 ACPI-Controlled Voltages - 5VDUAL USB/Keyboard/Mouse (Active/Sleep) - 3.3VDUAL/3.3VSB PCI/Auxiliary/LAN (Active/Sleep) - 2.5VMEM RDRAM (Active/Sleep) - 3.3VMEM SDRAM (Active/Sleep) - 2.5VCLK Clock/Processor Terminations (Active Only)
* Excellent Output Voltage Regulation

HIP6502B Applications

* The IC integrates four linear controllers/regulators, switching, monitoring and control functions into a 20-pin SOIC package. One linear controller generates the 3.3VDUAL/3.3VSB voltage plane from the ATX supply’s 5VSB output, powering the south bridge and the PCI slots through an external pass tra

📥 Download Datasheet

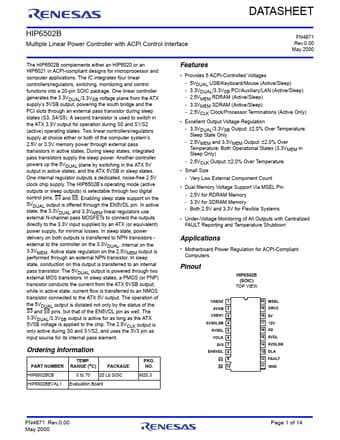

Preview of HIP6502B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP6502B
Manufacturer
Renesas ↗
File Size
732.58 KB
Datasheet
HIP6502B-Renesas.pdf
Description
Multiple Linear Power Controller
