HIP6008 Buck Pulse-Width Modulator (PWM) Controller and Output Voltage Monitor

HIP6008 Description

HIP6008 Data Sheet March 2000 File Number 4281.2 Buck Pulse-Width Modulator (PWM) Controller and Output Voltage Monitor The HIP6008 provides complete.
OCSET 1 SS 2 VID0 3 VID1 4 VID2 5 VID3 6 COMP 7 FB 8 16 VSEN 15 RT/OVP 14 VCC 13 BOOT 12 UGATE 11 PHASE 10 PGOOD 9 GND COMP (Pin 7) and FB (Pin 8) CO.

HIP6008 Features

* a 15MHz gain-bandwidth product and 6V/µs slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0% to 100%. The HIP6008 monitors the output voltage with a window comparator that tracks the DAC output and issues a Power Good signal wh

HIP6008 Applications

* It is designed to drive an N-Channel MOSFET in a standard buck topology. The HIP6008 integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter is easily adjusted and precisely regulated. The HIP6008 includes a 4-

📥 Download Datasheet

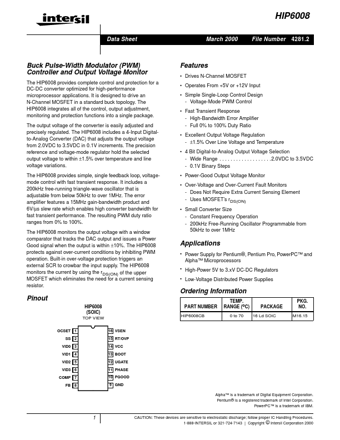

Preview of HIP6008 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP6008
Manufacturer
Intersil Corporation
File Size
209.83 KB
Datasheet
HIP6008_IntersilCorporation.pdf
Description
Buck Pulse-Width Modulator (PWM) Controller and Output Voltage Monitor
