HIP6004D PWM Controller and Output Voltage Monitor

HIP6004D Description

HIP6004D NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT c1o-8n8t8a-cItNoTuErRTSeIcLhonricwawl Swu.ipnpteorrstiCl.ceonmte/rtsact Buck and.

HIP6004D Features

* a 15MHz gain-bandwidth product and 6V/s slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0% to 100%. The HIP6004D monitors the output voltage with a window comparator that tracks the DAC output and issues a Power Good signal w

HIP6004D Applications

* It is designed to drive two N-Channel MOSFETs in a synchronous-rectified buck topology. The HIP6004D integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter is easily adjusted and precisely regulated. The HIP60

📥 Download Datasheet

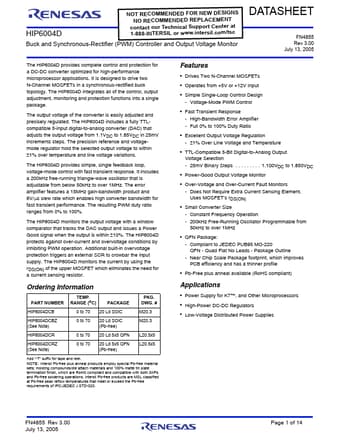

Preview of HIP6004D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP6004D
Manufacturer
Renesas ↗
File Size
898.10 KB
Datasheet
HIP6004D-Renesas.pdf
Description
PWM Controller and Output Voltage Monitor
