C535 - 2SC535

Features

  • here may contain technical inaccuracies or typographical errors. Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay attention to information published by Renesas Technology Corp. by various means, including the Renesas Technology Corp. Semiconductor.

📥 Download Datasheet

Datasheet Details

Part number C535
Manufacturer Renesas
File Size 204.77 KB
Description 2SC535
Datasheet download datasheet C535 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C5352 2SC5352 Toshiba Semiconductor
C5353 Silicon NPN Transistor Toshiba
C5354 2SC5354 Toshiba Semiconductor
C5355 2SC5355 Toshiba Semiconductor
C5356 2SC5356 Toshiba

Other Datasheets by Renesas

Part Number Description
C5336 2SC5336

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

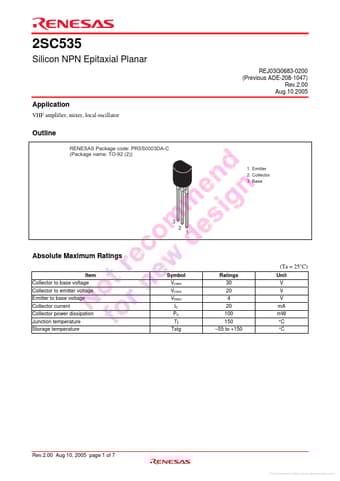

2SC535 Silicon NPN Epitaxial Planar Application VHF amplifier, mixer, local oscillator Outline RENESAS Package code: PRSS0003DA-C (Package name: TO-92 (2)) REJ03G0683-0200 (Previous ADE-208-1047) Rev.2.00 Aug.10.2005 1. Emitter 2. Collector 3. Base Absolute Maximum Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature 3 2 1 Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 30 20 4 20 100 150 –55 to +150 (Ta = 25°C) Unit V V V mA mW °C °C Rev.2.00 Aug 10, 2005 page 1 of 7 Free Datasheet http://www.datasheet4u.
