9DBL0641C, 9DBL0242C 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers

Renesas

Description

9DBL02x2/9DBL04x2/9DBL06x1/9DBL08x1C 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers Datasheet The 9DBL02x2/9DBL04x2/9DBL06x1/9DBL08x1C buffers ar.
6 2.

📥 Download Datasheet

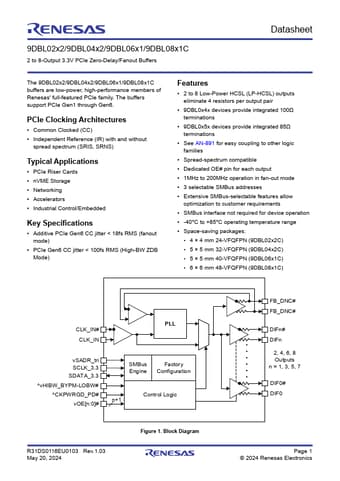

9DBL0641C Datasheet Preview — This datasheet PDF includes multiple part numbers: 9DBL0641C, 9DBL0242C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 9DBL0641C, 9DBL0242C
Manufacturer: Renesas ↗
File Size: 1.39 MB
Datasheet: 9DBL0242C-Renesas.pdf
Description: 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers
Note: This datasheet PDF includes multiple part numbers: 9DBL0641C, 9DBL0242C.
Please refer to the document for exact specifications by model.

Features

* ▪ 2 to 8 Low-Power HCSL (LP-HCSL) outputs eliminate 4 resistors per output pair ▪ 9DBL0x4x devices provide integrated 100Ω terminations ▪ 9DBL0x5x devices provide integrated 85Ω terminations ▪ See AN-891 for easy coupling to other logic families ▪ Spread-spectrum compatible ▪ Dedicated OE# pin for e
