9DBL0452C - 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers

Product Overview

Renesas

📥 Download Datasheet

9DBL0452C 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers by Renesas - Datasheet Preview — Datasheet preview – 9DBL0452C

Datasheet Details

Part number	9DBL0452C
Manufacturer	Renesas
File Size	1.39 MB
Description	2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers
Datasheet	9DBL0452C Datasheet
Note	This datasheet PDF includes multiple part numbers: 9DBL0452C, 9DBL0242C. Please refer to the document for exact specifications by model.

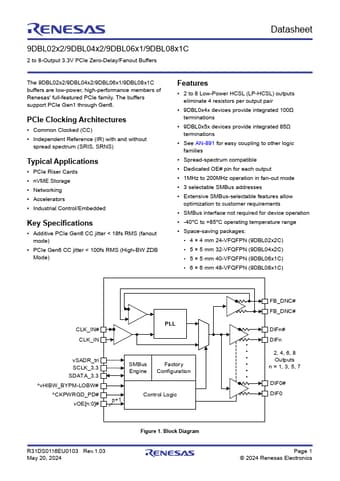

Additional preview pages of the 9DBL0452C datasheet.

Product details

Description

6 2. Specifications . .

Features

2 to 8 Low-Power HCSL (LP-HCSL) outputs eliminate 4 resistors per output pair.
9DBL0x4x devices provide integrated 100Ω terminations.
9DBL0x5x devices provide integrated 85Ω terminations.
See AN-891 for easy coupling to other logic families.
Spread-spectrum compatible.
Dedicated OE# pin for each output.
1MHz to 200MHz operation in fan-out mode.
3 selectable SMBus addresses.
Extensive SMBus-selectable features allow optimization to customer requiremen.
