2SC5753 - NPN SILICON RF TRANSISTOR

Renesas

📥 Download Datasheet

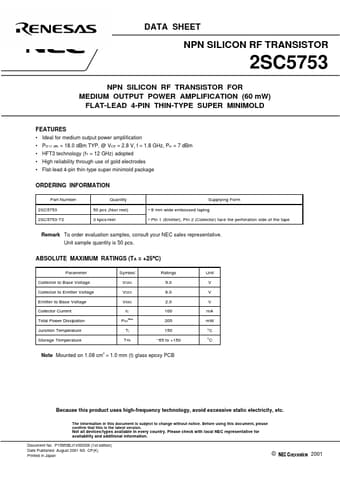

2SC5753 Datasheet Preview — Preview of 2SC5753 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5753
Manufacturer	Renesas
File Size	138.33 KB
Description	NPN SILICON RF TRANSISTOR
Datasheet	2SC5753-Renesas.pdf

2SC5753 Product details

Features

Ideal for medium output power amplification.
PO (1 dB) = 18.0 dBm TYP. @ VCE = 2.8 V, f = 1.8 GHz, Pin = 7 dBm.
HFT3 technology (fT = 12 GHz) adopted.
High reliability through use of gold electrodes.
Flat-lead 4-pin thin-type super minimold package.
