M65582AMF-XXXFP NTSC TV Signal Processor with MCU

M65582AMF-XXXFP Description

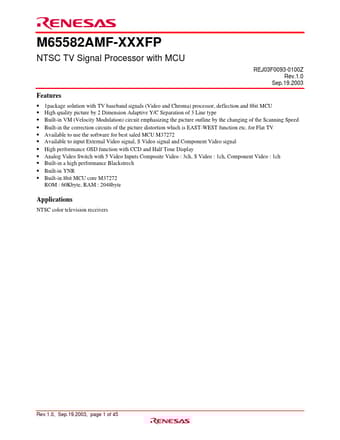

M65582AMF-XXXFP NTSC TV Signal Processor with MCU REJ03F0093-0100Z Rev.1.0 Sep.19.2003 .

M65582AMF-XXXFP Features

* 1package solution with TV baseband signals (Video and Chroma) processor, deflection and 8bit MCU High quality picture by 2 Dimension Adaptive Y/C Separation of 3 Line type Built-in VM (Veloc

M65582AMF-XXXFP Applications

* NTSC color television receivers Rev.1.0, Sep.19.2003, page 1 of 45 Pin Configuration M65582AMF-XXXFP P44 P03/PWM3/AD1 P45 P04/PWM4/AD2 P05/AD3 P06/INT2/AD4 P07/INT1 P15 P16 P20/SCLK/AD5 P21/Sout/AD6 P22/Sin/AD7 P23/TIM3 P24/TIM2 P25/INT3 P26/Xcin 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
