M65530FP TRIPLE 10-BIT VIDEO D-A CONVERTER

M65530FP Description

MITSUBISHI ICs (AV COMMON) M65530FP TRIPLE 10-BIT VIDEO D-A CONVERTER .
The M65530FP is a CMOS 10-bit digital-to-analog converter for video signal processing.

M65530FP Features

* an adjustment function of analog output amplitude, thereby controlling the amplitude by simply changing an adjustment resistor. FEATURE
* Triple 10-bit video speed D-A converters Maximum conversion rate of 50 MSPS Adjustable analog output

M65530FP Applications

* TV, VCR, etc. RECOMMENDED OPERATING CONDITION Supply voltage range4.75 to 5.25 V Rated supply voltage5.0 V PIN CONFIGURATION (TOP VIEW) VZ IOUTR 55 56 34 33 32 31 30 29 N. C CEB BLK B9 B8 B7 B6 B5 B4 B3 B2 B1 B0(LSB) G9 IOUTRB 57 AVDD AVDD IOUTG 58 59 60 IOUTGB 61 AVDD AVDD IOUTB 62 63 64 M6

📥 Download Datasheet

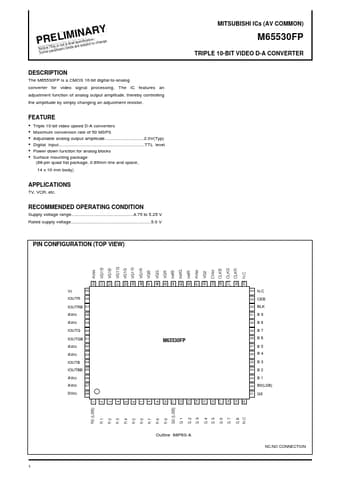

Preview of M65530FP PDF
