HZS6L1 - (HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application

Renesas Technology

📥 Download Datasheet

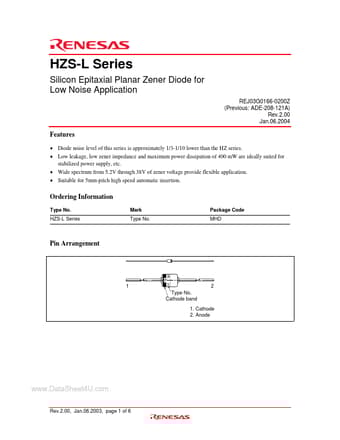

HZS6L1 Datasheet Preview — Preview of HZS6L1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HZS6L1
Manufacturer	Renesas ↗ Technology
File Size	109.35 KB
Description	(HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application
Datasheet	HZS6L1_RenesasTechnology.pdf

HZS6L1 Product details

Features

Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide spectrum from 5.2V through 38V of zener voltage provide flexible.
