HZS6L, HZS6L1 - (HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application

Renesas Technology

📥 Download Datasheet

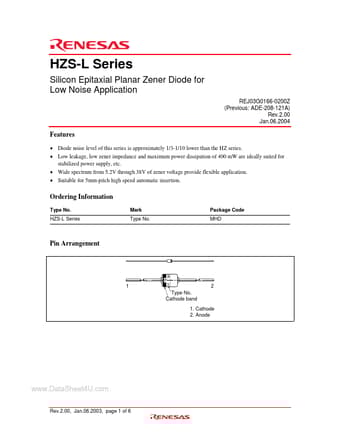

HZS6L Datasheet Preview — This datasheet PDF includes multiple part numbers: HZS6L, HZS6L1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HZS6L, HZS6L1
Manufacturer	Renesas ↗ Technology
File Size	109.35 KB
Description	(HZS-L Series) Silicon Epitaxial Planar Zener Diode for Low Noise Application
Datasheet	HZS6L1_RenesasTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: HZS6L, HZS6L1. Please refer to the document for exact specifications by model.

HZS6L Product details

Features

Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide spectrum from 5.2V through 38V of zener voltage provide flexible.
