ECN3064 - High Voltage Monolithic IC

Renesas Technology

📥 Download Datasheet

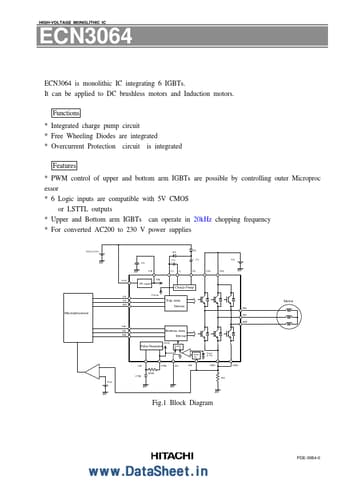

ECN3064 Datasheet Preview — Preview of ECN3064 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ECN3064
Manufacturer	Renesas ↗ Technology
File Size	113.43 KB
Description	High Voltage Monolithic IC
Datasheet	ECN3064_RenesasTechnology.pdf

ECN3064 Product details

Features

PWM control of upper and bottom arm IGBTs are possible by controlling outer Microproc essor.
6 Logic inputs are compatible with 5V CMOS or LSTTL outputs.
Upper and Bottom arm IGBTs can operate in 20kHz chopping frequency.
For converted AC200 to 230 V power supplies VCC(15V) D1 + C1 CCL VS1 VS2 VS D2 C2 + CB VCC VB supply VB C+ C0 Charge Pump UT VT WT Clock Top Arm Driver Motor MU MV MW Microprocessor UB VB WB Bottom Arm Driver CLOCK Pulse Generator Latch R S + Fi.
