ECN3063 - High Voltage Monolithic IC

Renesas Technology

📥 Download Datasheet

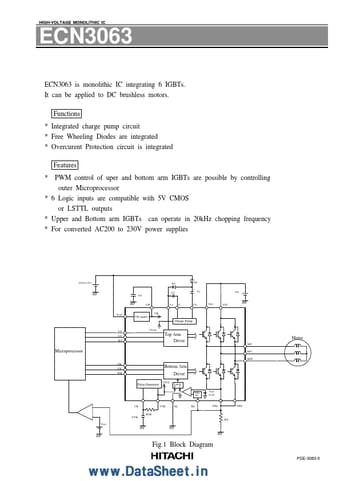

ECN3063 Datasheet Preview — Preview of ECN3063 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ECN3063
Manufacturer	Renesas ↗ Technology
File Size	92.07 KB
Description	High Voltage Monolithic IC
Datasheet	ECN3063_RenesasTechnology.pdf

ECN3063 Product details

Features

PWM control of uper and bottom arm IGBTs are possible by controlling outer Microprocessor.
6 Logic inputs are compatible with 5V CMOS or LSTTL outputs.
Upper and Bottom arm IGBTs can operate in 20kHz chopping frequency.
For converted AC200 to 230V power supplies.
VCC(15V) D2 C2 + CB VB VB supply C+ C- D1 + C1 VS C0 - CL VS1 VS2 VCC Charge Pump UT VT WT Clock Top Arm Driver Motor MU MV MW Microprocessor UB VB WB Bottom Arm Driver Pulse Generator CLOCK Latch R S.
