MSB304S, MSB301S - SILICON BRIDGE RECTIFIER

Rectron

The MSB304S by Rectron is a SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

MSB304S SILICON BRIDGE RECTIFIER by Rectron - Datasheet Preview — Official preview page of the **MSB304S** SILICON BRIDGE RECTIFIER datasheet (Rectron).

Datasheet Details

Part number	MSB304S, MSB301S
Manufacturer	Rectron
File Size	205.59 KB
Description	SILICON BRIDGE RECTIFIER
Datasheet	MSB301S-Rectron.pdf
Note	This datasheet PDF includes multiple part numbers: MSB304S, MSB301S. Please refer to the document for exact specifications by model.

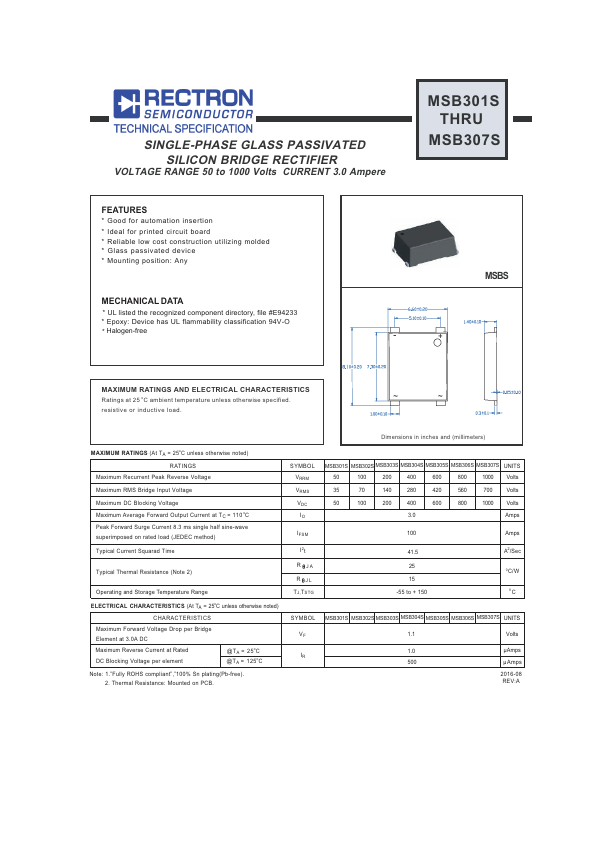

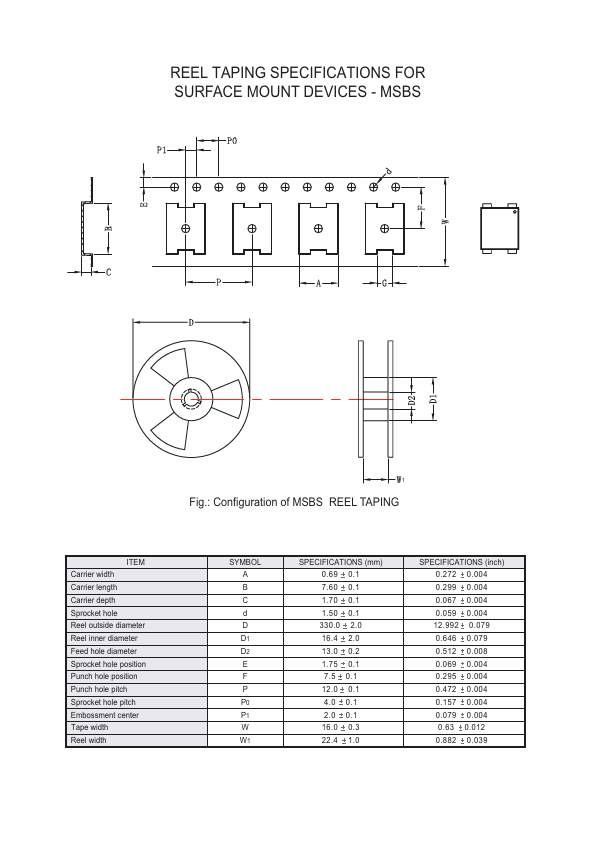

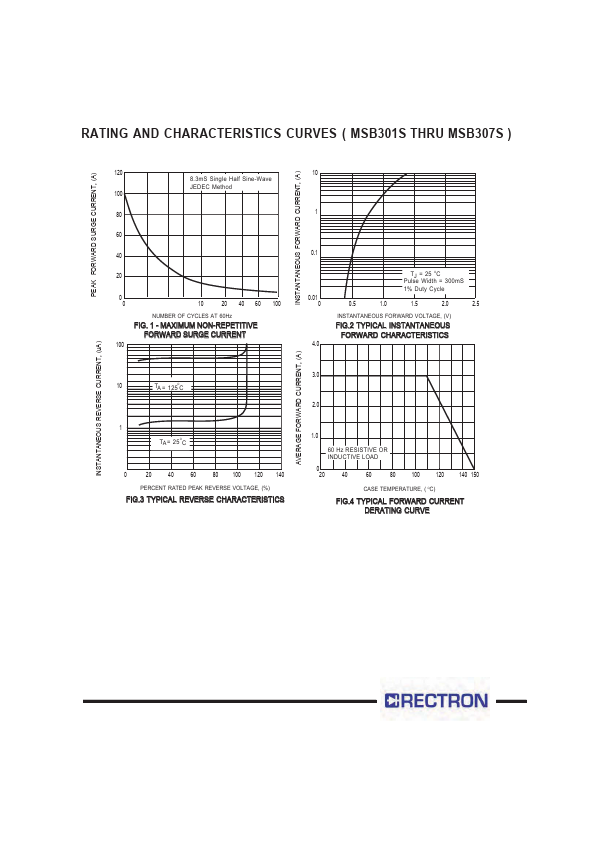

Additional preview pages of the MSB304S datasheet.

MSB304S Product details

Description

Part No. code: (Y:Last digit of year& A:2010, B:2011……) Week code: (WW:01~52) Halogen-free DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes.Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies.Data sheet specifications

Features

Good for automation insertion.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded.
Glass passivated device.
Mounting position: Any.
