MSB304, MSB301-E - Single-Phase Bridge Rectifier

E-CMOS

📥 Download Datasheet

MSB304 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSB304, MSB301-E. Please refer to the document for exact specifications by model.

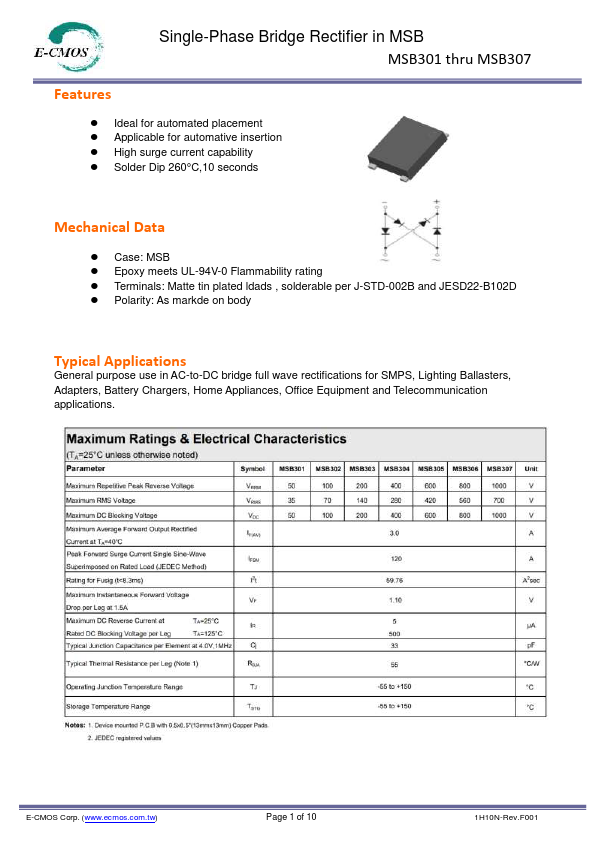

datasheet Preview Page 2

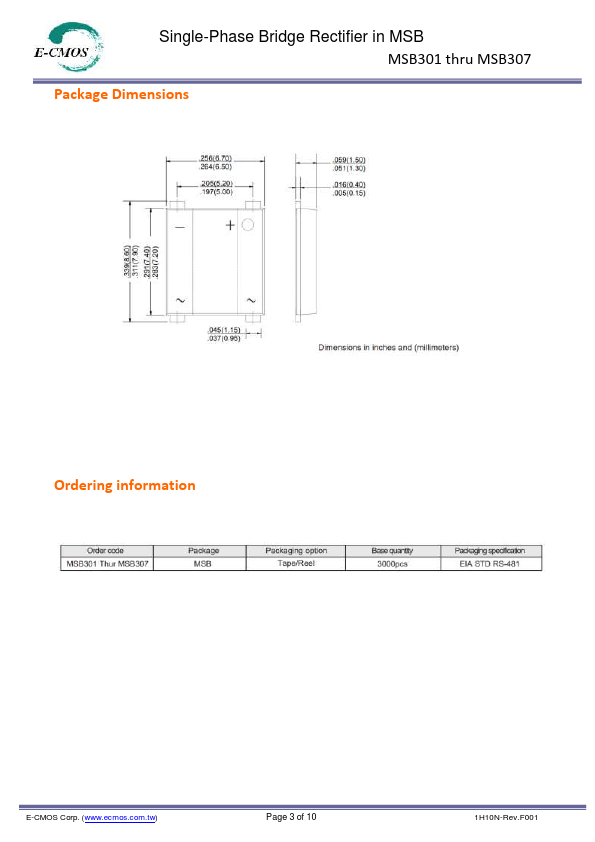

datasheet Preview Page 3

Datasheet Details

Part number	MSB304, MSB301-E
Manufacturer	E-CMOS
File Size	559.64 KB
Description	Single-Phase Bridge Rectifier
Datasheet	MSB301-E-CMOS.pdf
Note	This datasheet PDF includes multiple part numbers: MSB304, MSB301-E. Please refer to the document for exact specifications by model.

MSB304 Product details

Features

Ideal for automated placement.
Applicable for automative insertion.
High surge current capability.
Solder Dip 260°C,10 seconds Mechanical Data.
Case: MSB.
Epoxy meets UL-94V-0 Flammability rating.
Terminals: Matte tin plated ldads , solderable per J-STD-002B and JESD22-B102D.
Polarity: As markde on body Typical.
