RSE70R360F - Super Junction MOSFET

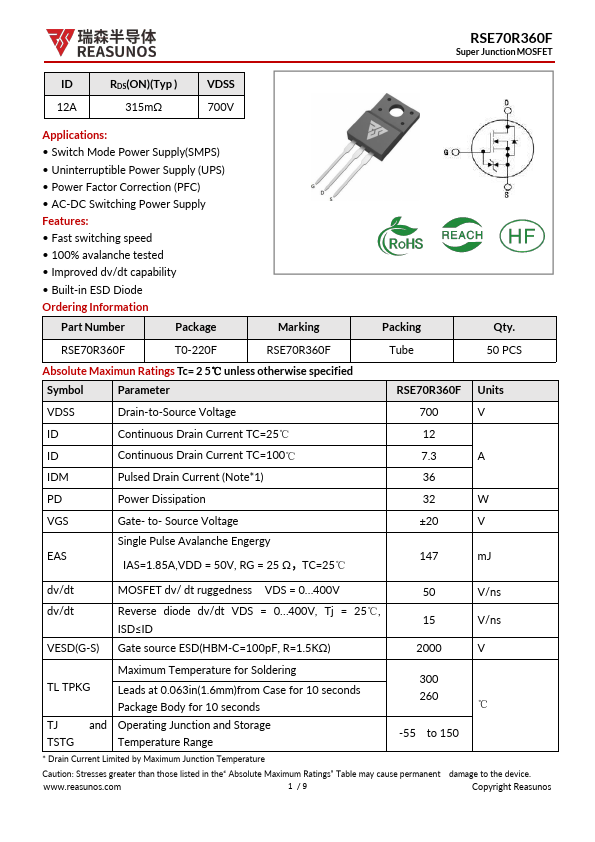

The RSE70R360F by Reasunos is a Super Junction MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	RSE70R360F
Manufacturer	Reasunos
File Size	953.44 KB
Description	Super Junction MOSFET
Datasheet	RSE70R360F-Reasunos.pdf

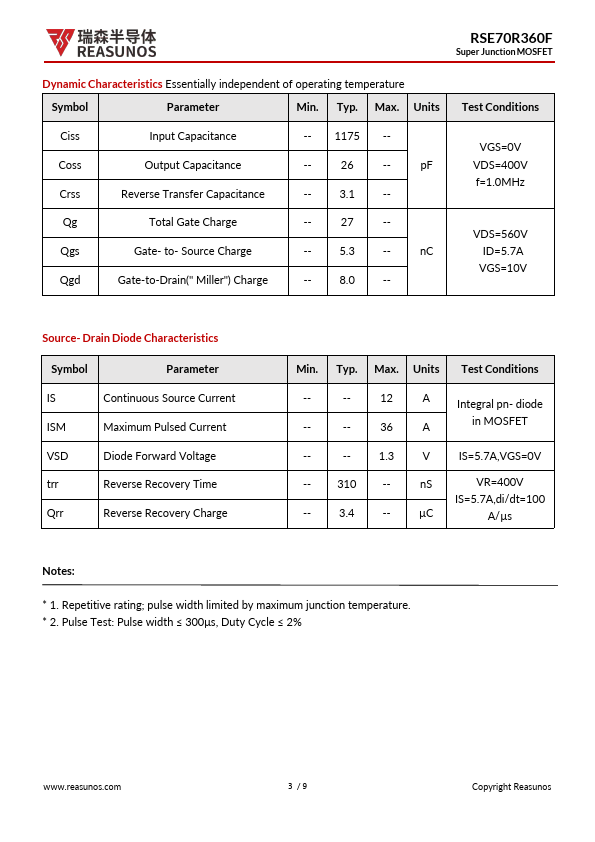

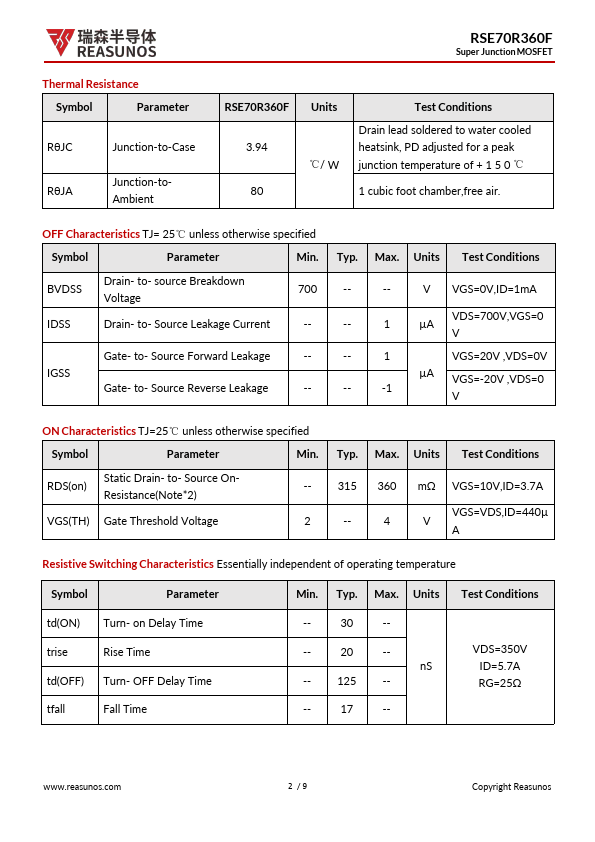

Additional preview pages of the RSE70R360F datasheet.

Fast switching speed.
100% avalanche tested.
Improved dv/dt capability.
Built-in ESD Diode Ordering Information Part Number Package Marking Packing Qty. RSE70R360F T0-220F RSE70R360F Absolute Maximun Ratings Tc= 2 5℃ unless otherwise specified Symbol Parameter Tube 50 PCS RSE70R360F Units VDSS ID ID IDM PD VGS EAS Drain-to-Source Voltage Continuous Drain Current TC=25℃ Continuous Drain Current TC=100℃ Pulsed Drain Current (Note.
1) Power D.
