RS8511 - Rail-to-Rail I/O CMOS Operational Amplifiers

Name: RS8511
SKU: RS8511-1587135

RUNIC

📥 Download Datasheet

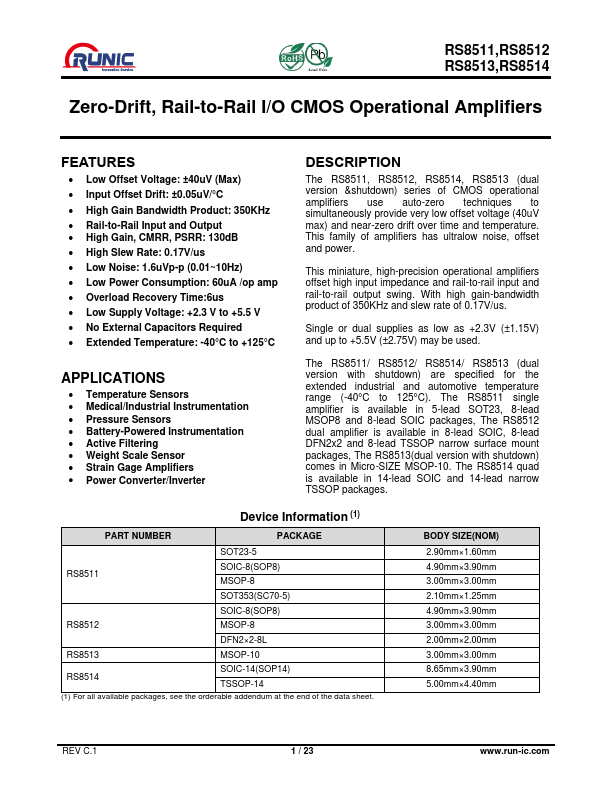

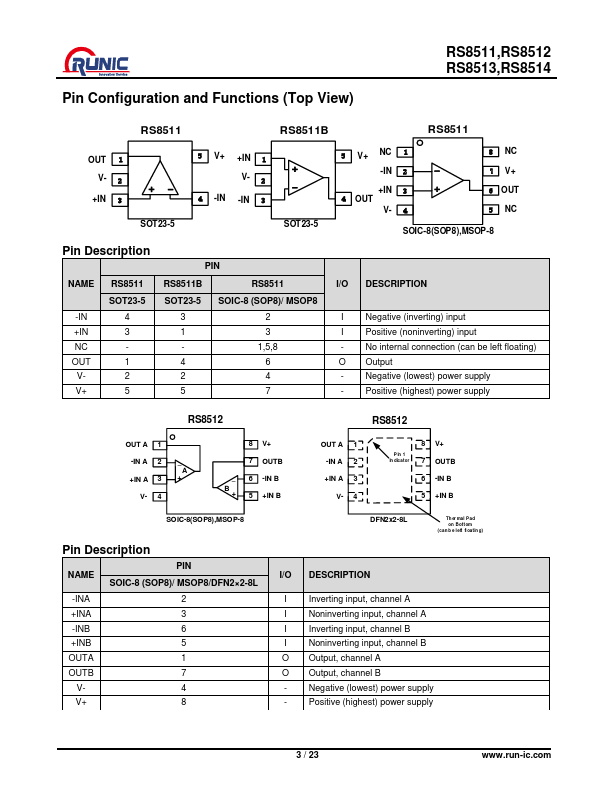

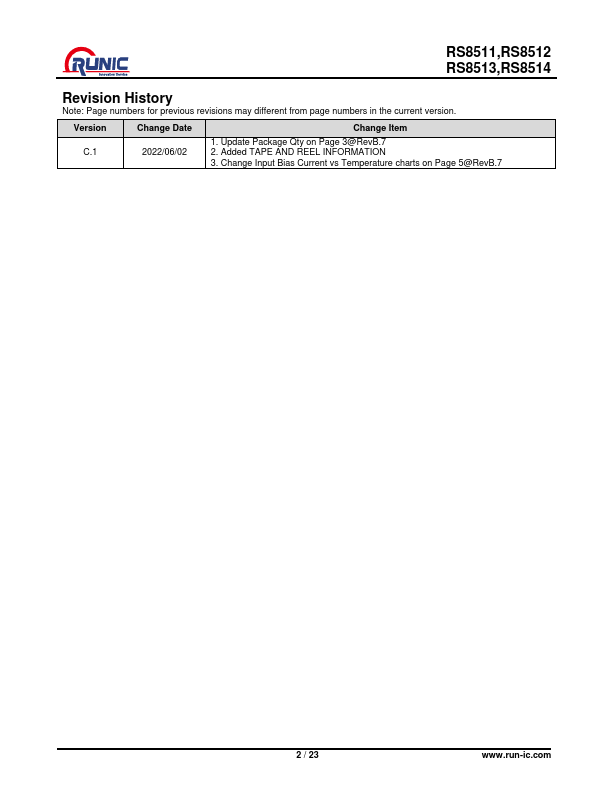

RS8511 Datasheet Preview — Preview of RS8511 PDF

Datasheet Details

Part number	RS8511
Manufacturer	RUNIC
File Size	592.75 KB
Description	Rail-to-Rail I/O CMOS Operational Amplifiers
Datasheet	RS8511-RUNIC.pdf

RS8511 Product details

Description

The RS8511, RS8512, RS8514, RS8513 (dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (40uV max) and near-zero drift over time and temperature.

Features

Low Offset Voltage: ±40uV (Max).
Input Offset Drift: ±0.05uV/°C.
High Gain Bandwidth Product: 350KHz.
Rail-to-Rail Input and Output.
High Gain, CMRR, PSRR: 130dB.
High Slew Rate: 0.17V/us.
Low Noise: 1.6uVp-p (0.01~10Hz).
Low Power Consumption: 60uA /op amp.
Overload Recovery Time:6us.
Low Supply Voltage: +2.3 V to +5.5 V.
No External Capacitors Required.
Extended Temperature: -40°C to +1.
