RS6G17 - 6-channel Schmitt-Trigger buffers

RUNIC

📥 Download Datasheet

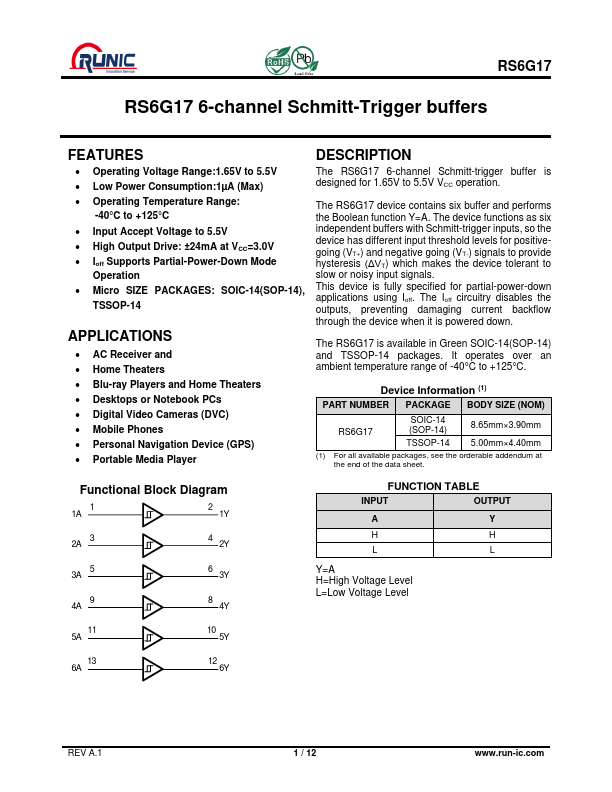

RS6G17 Datasheet Preview — Preview of RS6G17 PDF

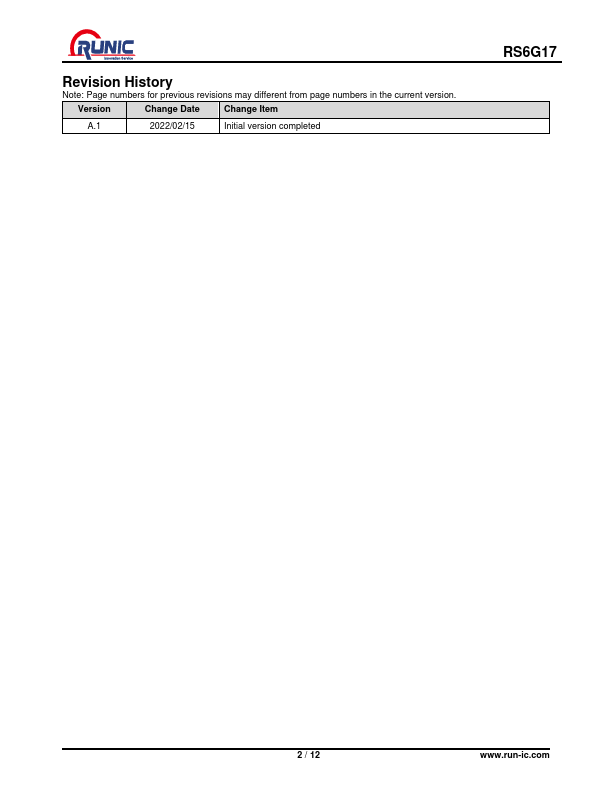

datasheet Preview Page 2

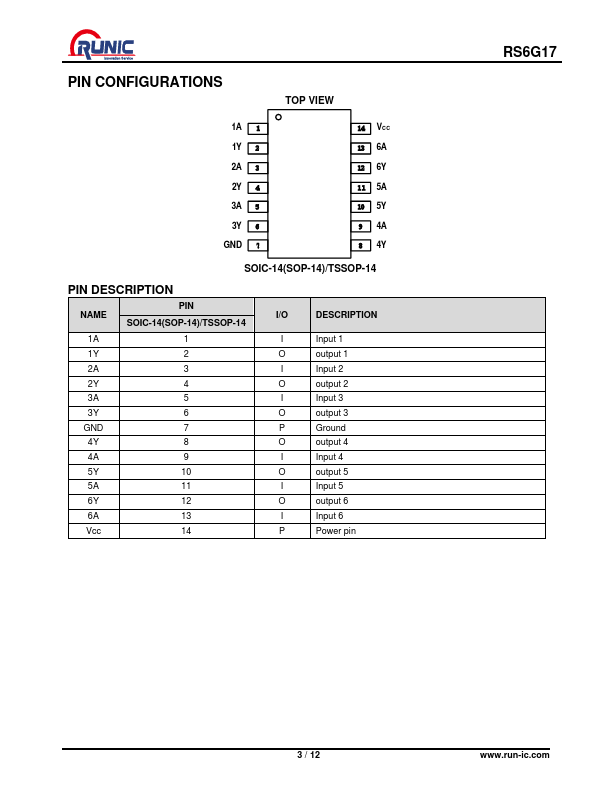

datasheet Preview Page 3

Datasheet Details

Part number	RS6G17
Manufacturer	RUNIC
File Size	316.89 KB
Description	6-channel Schmitt-Trigger buffers
Datasheet	RS6G17-RUNIC.pdf

RS6G17 Product details

Description

The RS6G17 6-channel Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation.

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Input Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
Ioff Supports Partial-Power-Down Mode Operation.
Micro SIZE.
