RS6G04 - 6-channel Inverter Gate

RUNIC

The RS6G04 by RUNIC is a 6-channel Inverter Gate. Below is the official datasheet preview.

📥 Download Datasheet

RS6G04 6-channel Inverter Gate by RUNIC - Datasheet Preview — Official preview page of the RS6G04 6-channel Inverter Gate datasheet (RUNIC).

Datasheet Details

Part number	RS6G04
Manufacturer	RUNIC
File Size	351.87 KB
Description	6-channel Inverter Gate
Datasheet	RS6G04-RUNIC.pdf

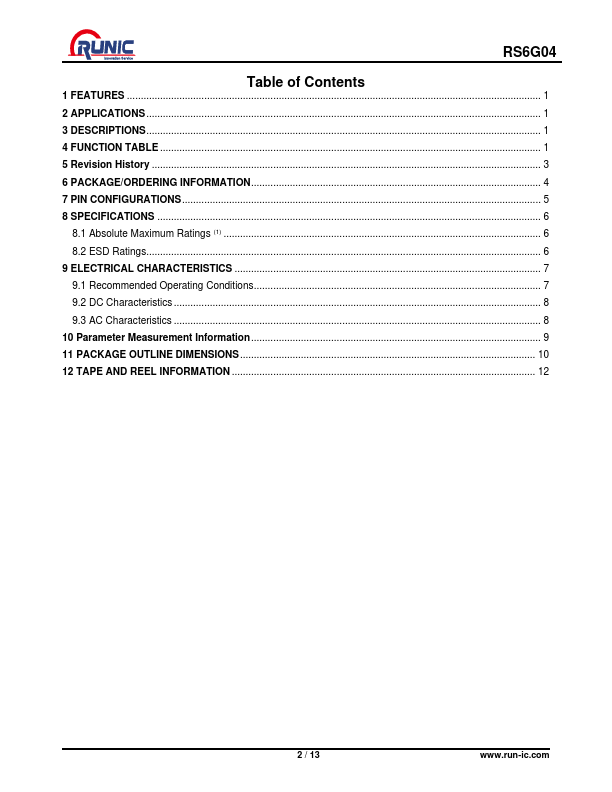

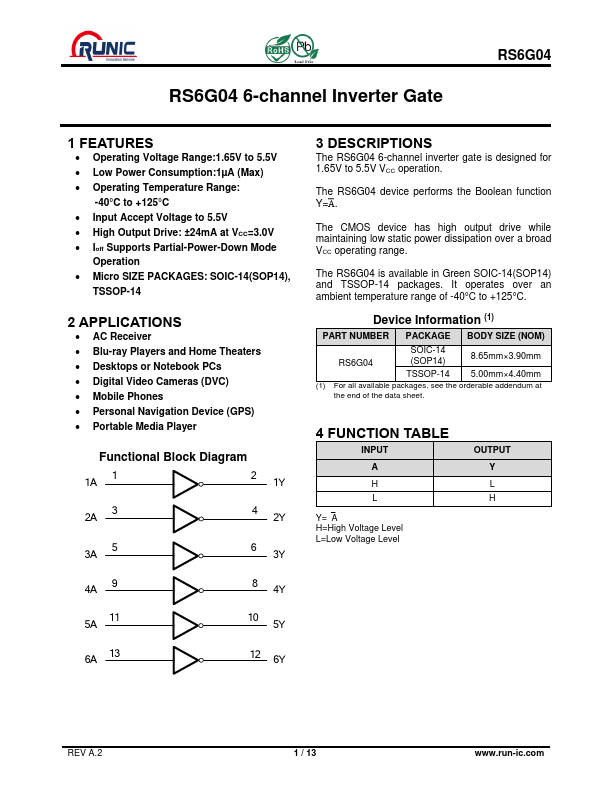

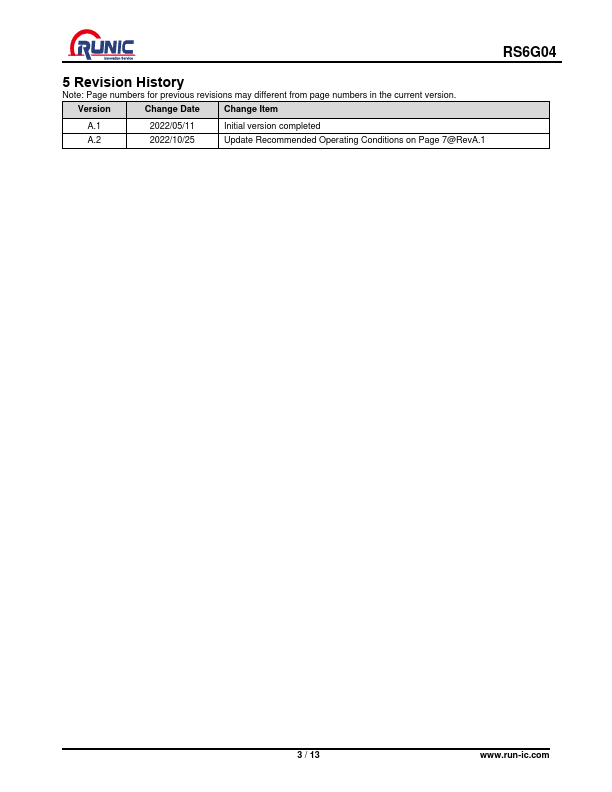

Additional preview pages of the RS6G04 datasheet.

RS6G04 Product details

Description

The RS6G04 6-channel inverter gate is designed for 1.65V to 5.5V VCC operation.

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Input Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
Ioff Supports Partial-Power-Down Mode Operation.
Micro SIZE.
