RS3425XH6-Q1, RS3412XH6-Q1 Datasheet - RUNIC

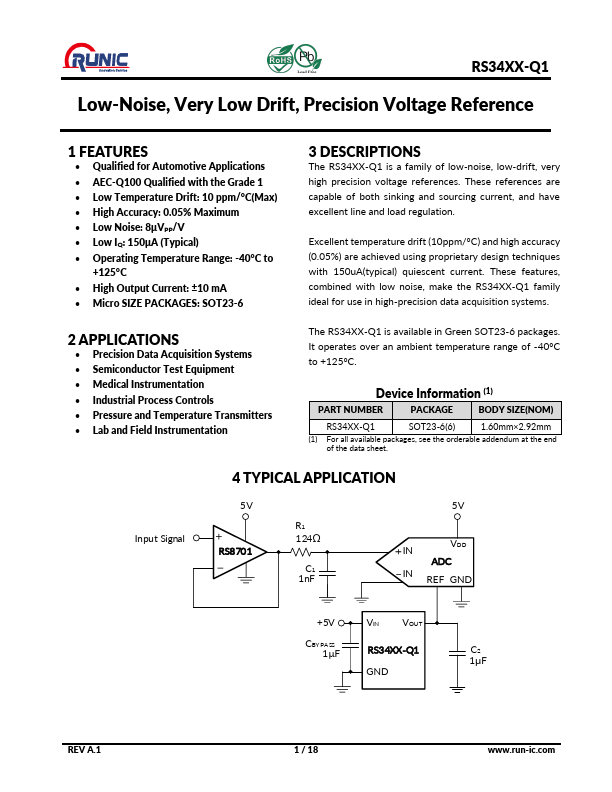

RS3425XH6-Q1 Precision Voltage Reference

The RS34XX-Q1 is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (10ppm/°C) and high accuracy (0.05%) are achieved using proprietary .

RS3425XH6-Q1 Features

* Qualified for Automotive Applications

* AEC-Q100 Qualified with the Grade 1

* Low Temperature Drift: 10 ppm/°C(Max)

* High Accuracy: 0.05% Maximum

* Low Noise: 8μVPP/V

* Low IQ: 150μA (Typical)

* Operating Temperature Range: -40°C to +125°C

RS3412XH6-Q1-RUNIC.pdf

RS3425XH6-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS3425XH6-Q1, RS3412XH6-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS3425XH6-Q1, RS3412XH6-Q1

Manufacturer:

RUNIC

File Size:

756.28 KB

Description:

Precision voltage reference.

Note:

This datasheet PDF includes multiple part numbers: RS3425XH6-Q1, RS3412XH6-Q1.
Please refer to the document for exact specifications by model.
