RS2G34 - Dual Buffer Gate

RUNIC

📥 Download Datasheet

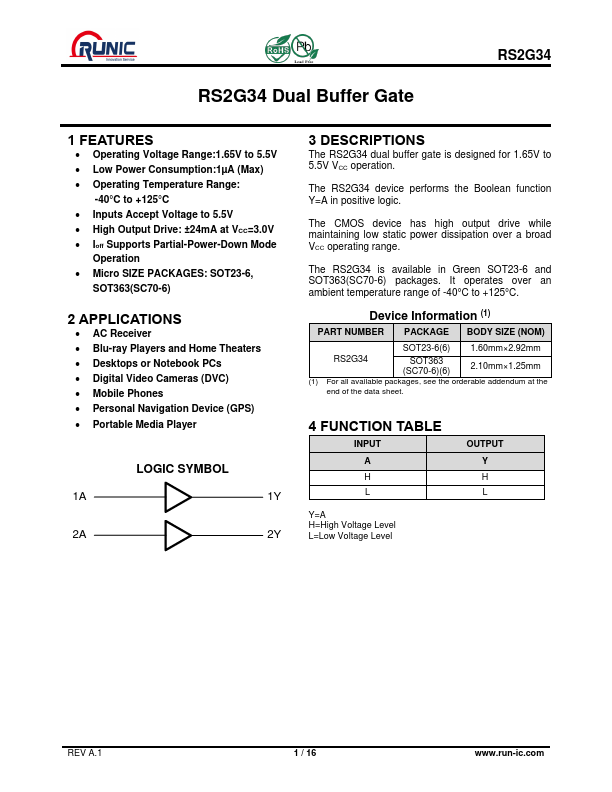

RS2G34 Datasheet Preview — Preview of RS2G34 PDF

datasheet Preview Page 2

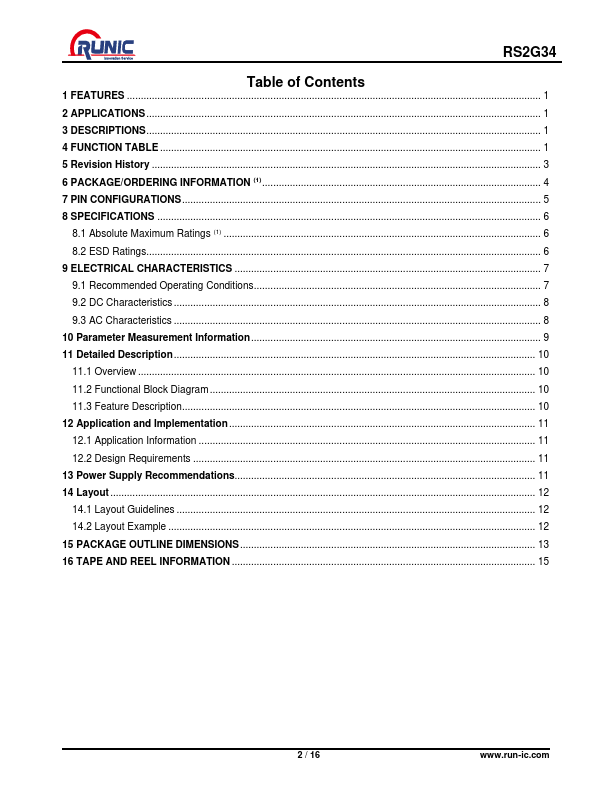

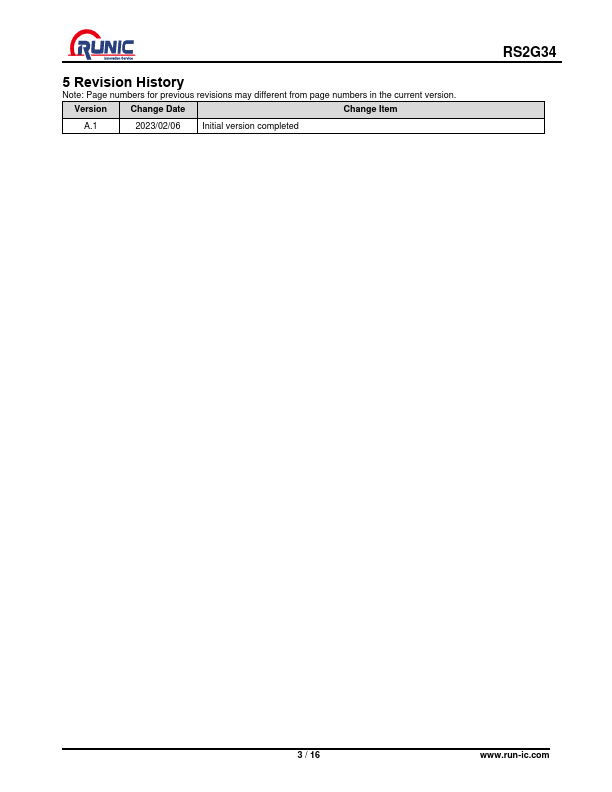

datasheet Preview Page 3

Datasheet Details

Part number	RS2G34
Manufacturer	RUNIC
File Size	359.77 KB
Description	Dual Buffer Gate
Datasheet	RS2G34-RUNIC.pdf

RS2G34 Product details

Description

The RS2G34 dual buffer gate is designed for 1.65V to 5.5V VCC operation.

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Inputs Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
Ioff Supports Partial-Power-Down Mode Operation.
Micro SIZE.
