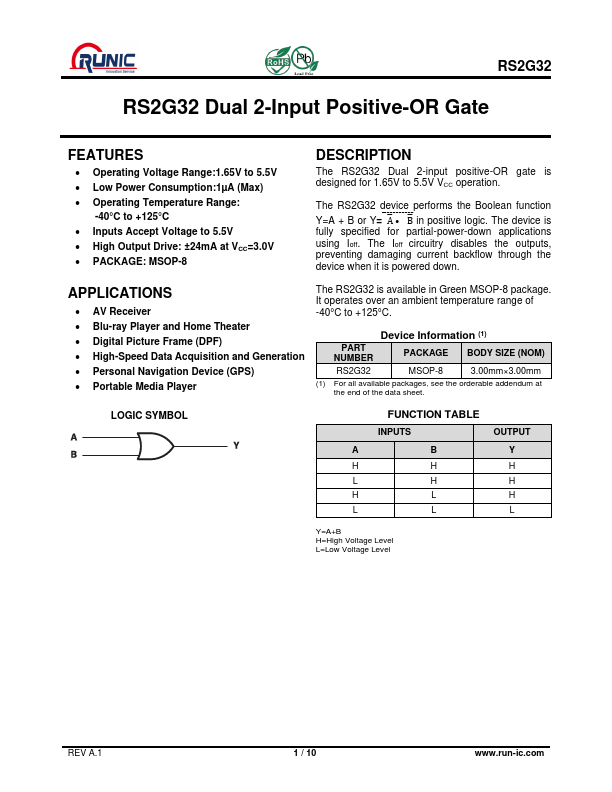

RS2G32 - Dual 2-Input Positive-OR Gate

RUNIC

The RS2G32 by RUNIC is a Dual 2-Input Positive-OR Gate. Below is the official datasheet preview.

📥 Download Datasheet

RS2G32 Dual 2-Input Positive-OR Gate by RUNIC - Datasheet Preview — Official preview page of the **RS2G32** Dual 2-Input Positive-OR Gate datasheet (RUNIC).

Datasheet Details

Part number	RS2G32
Manufacturer	RUNIC
File Size	371.68 KB
Description	Dual 2-Input Positive-OR Gate
Datasheet	RS2G32-RUNIC.pdf

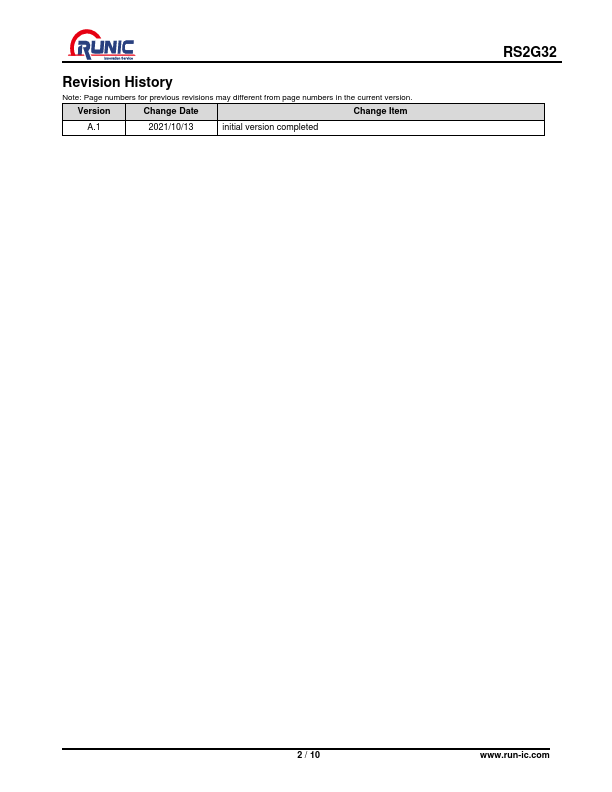

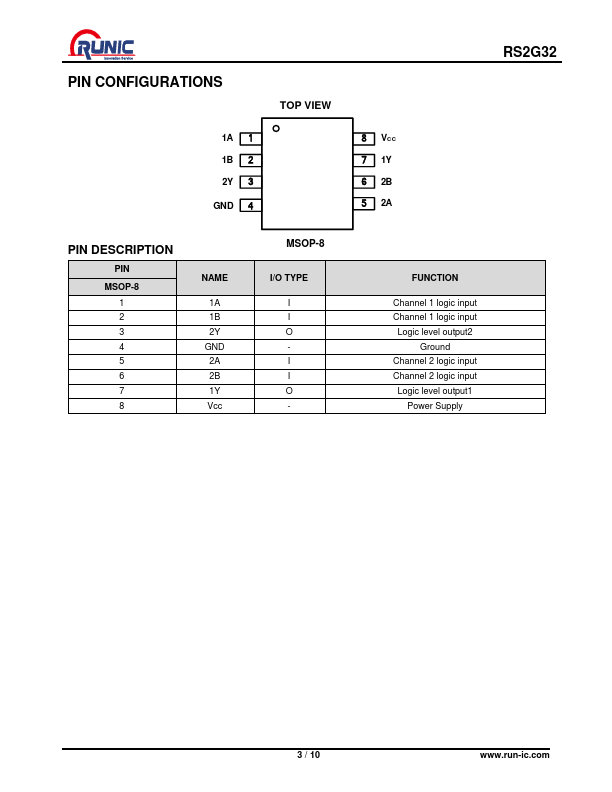

Additional preview pages of the RS2G32 datasheet.

RS2G32 Product details

Description

The RS2G32 Dual 2-input positive-OR gate is designed for 1.65V to 5.5V VCC operation. ̅̅̅̅B̅ in positive logic. AV Receiver Blu-ray Player and Home Theater Digital Picture Frame

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Inputs Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
