RS1G86 - Single 2-Input Exclusive-OR Gate

Name: RS1G86
SKU: RS1G86-1586196

RUNIC

📥 Download Datasheet

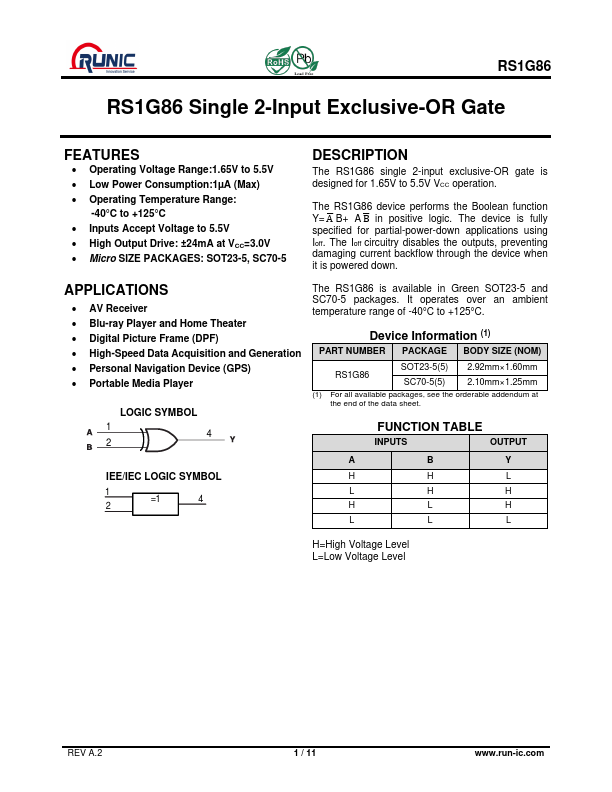

RS1G86 Datasheet Preview — Preview of RS1G86 PDF

Datasheet Details

Part number	RS1G86
Manufacturer	RUNIC
File Size	354.82 KB
Description	Single 2-Input Exclusive-OR Gate
Datasheet	RS1G86-RUNIC.pdf

RS1G86 Product details

Description

The RS1G86 single 2-input exclusive-OR gate is designed for 1.65V to 5.5V VCC operation. AV Receiver Blu-ray Player and Home Theater Digital Picture Frame (DPF) High

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Inputs Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
Micro SIZE.
