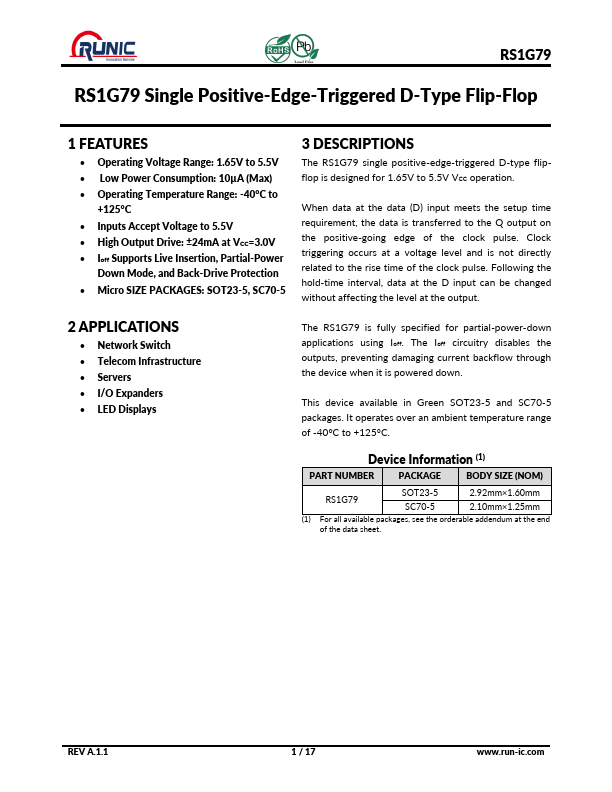

RS1G79 - Single Positive-Edge-Triggered D-Type Flip-Flop

The RS1G79 single positive-edge-triggered D-type flipflop is designed for 1.65V to 5.5V VCC operation. When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level .

RS1G79 Features

* Operating Voltage Range: 1.65V to 5.5V

* Low Power Consumption: 10µ A (Max)

* Operating Temperature Range: -40°C to +125°C

* Inputs Accept Voltage to 5.5V

* High Output Drive: ±24mA at VCC=3.0V

* Ioff Supports Live Insertion, Partial-Power Down Mode,
