RS1G57 - Configurable Multiple-Function Gate

Name: RS1G57
SKU: RS1G57-1586211

RUNIC

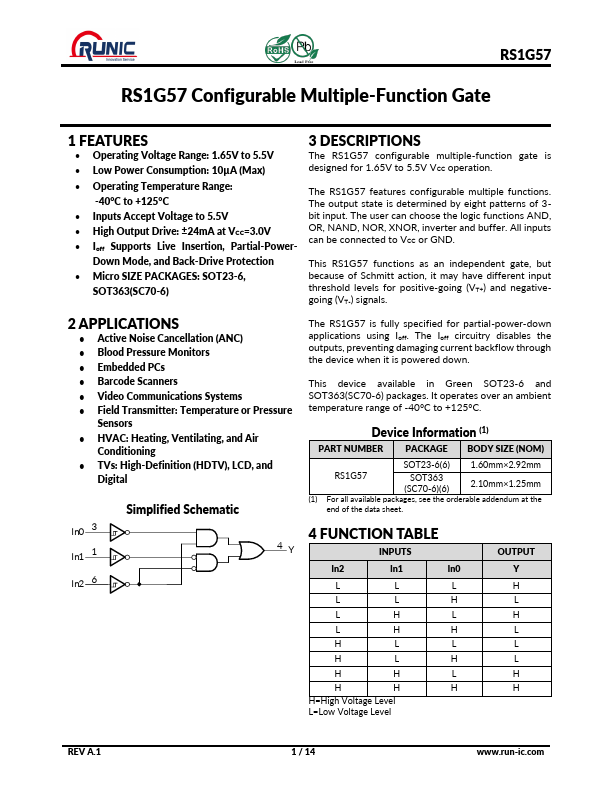

The RS1G57 by RUNIC is a Configurable Multiple-Function Gate. Below is the official datasheet preview.

Datasheet Details

Part number	RS1G57
Manufacturer	RUNIC
File Size	487.06 KB
Description	Configurable Multiple-Function Gate
Datasheet	RS1G57-RUNIC.pdf

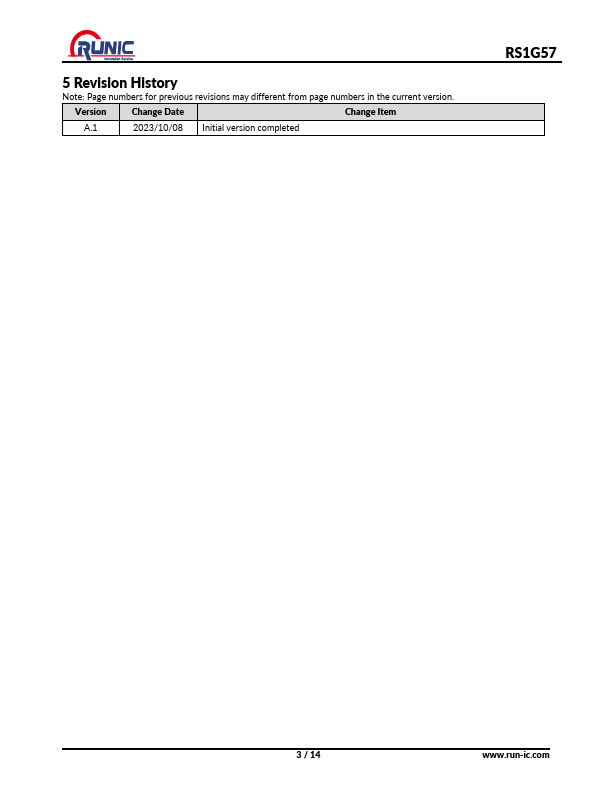

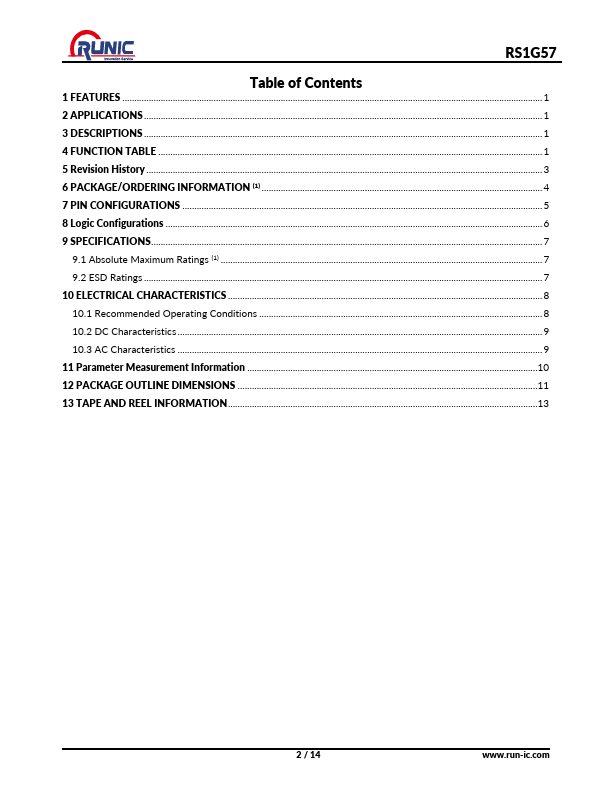

Additional preview pages of the RS1G57 datasheet.

The RS1G57 configurable multiple-function gate is designed for 1.65V to 5.5V VCC operation.

Operating Voltage Range: 1.65V to 5.5V.
Low Power Consumption: 10µ A (Max).
Operating Temperature Range: -40°C to +125°C.
Inputs Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
Ioff Supports Live Insertion, Partial-Power- Down Mode, and Back-Drive Protection.
Micro SIZE.
